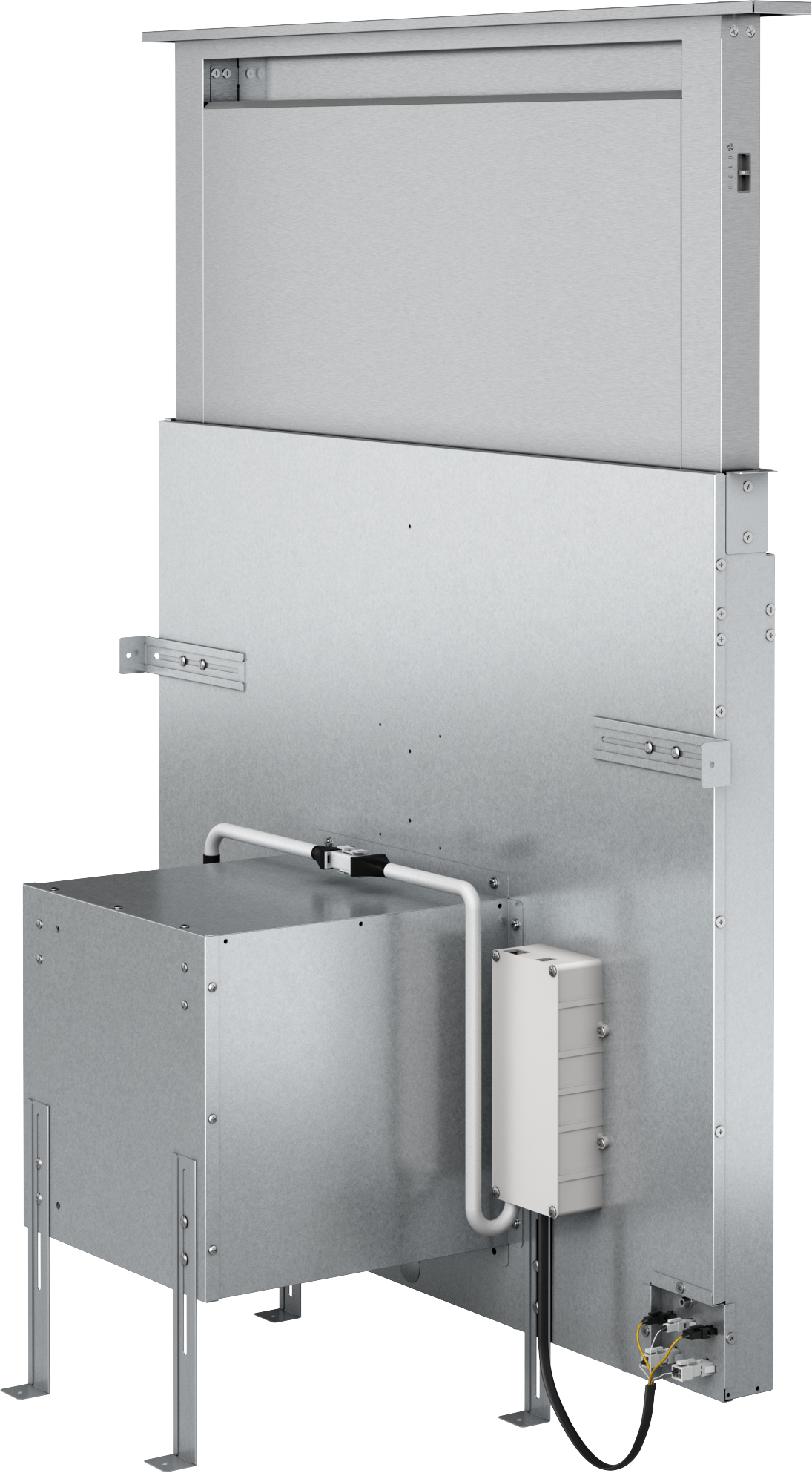

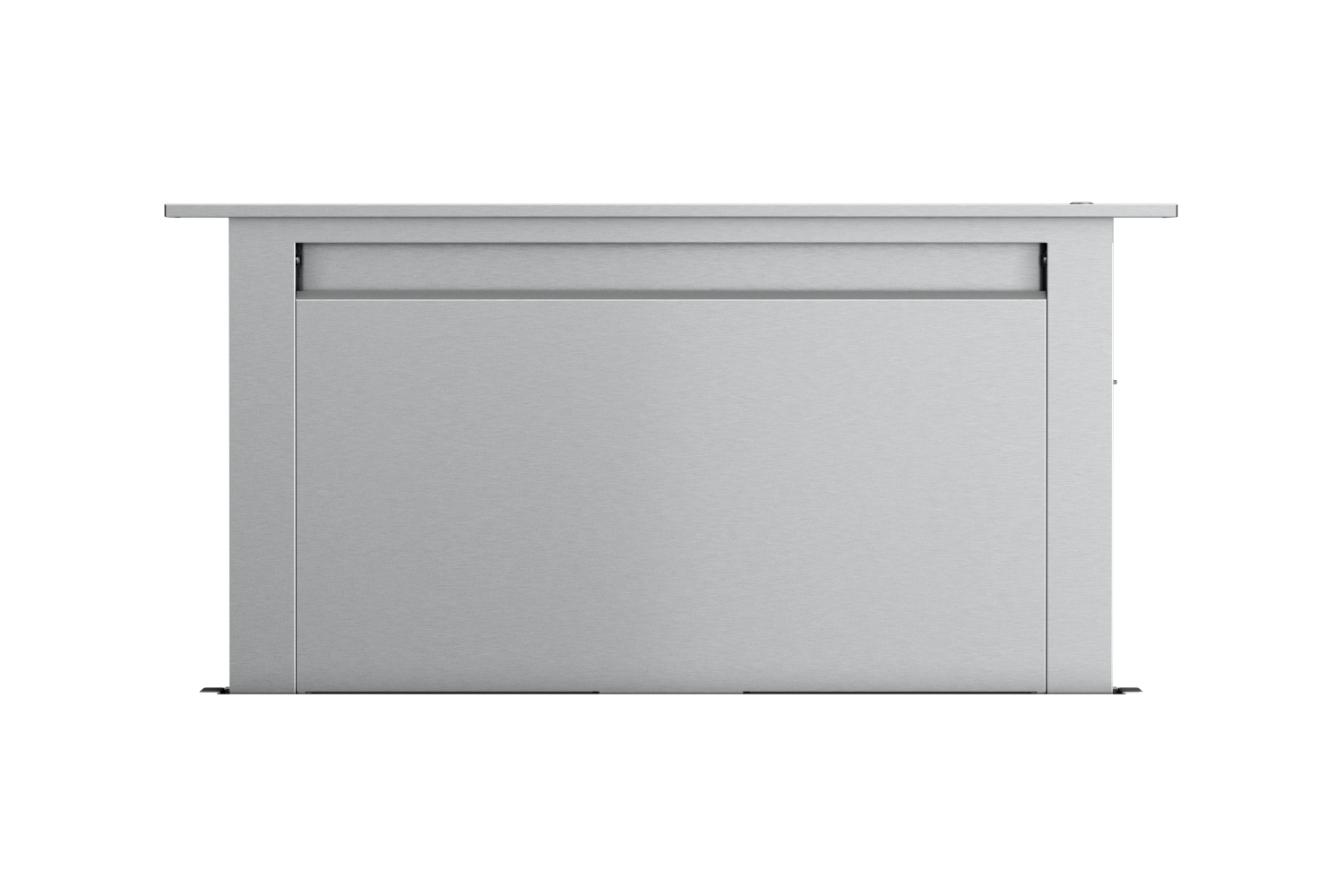

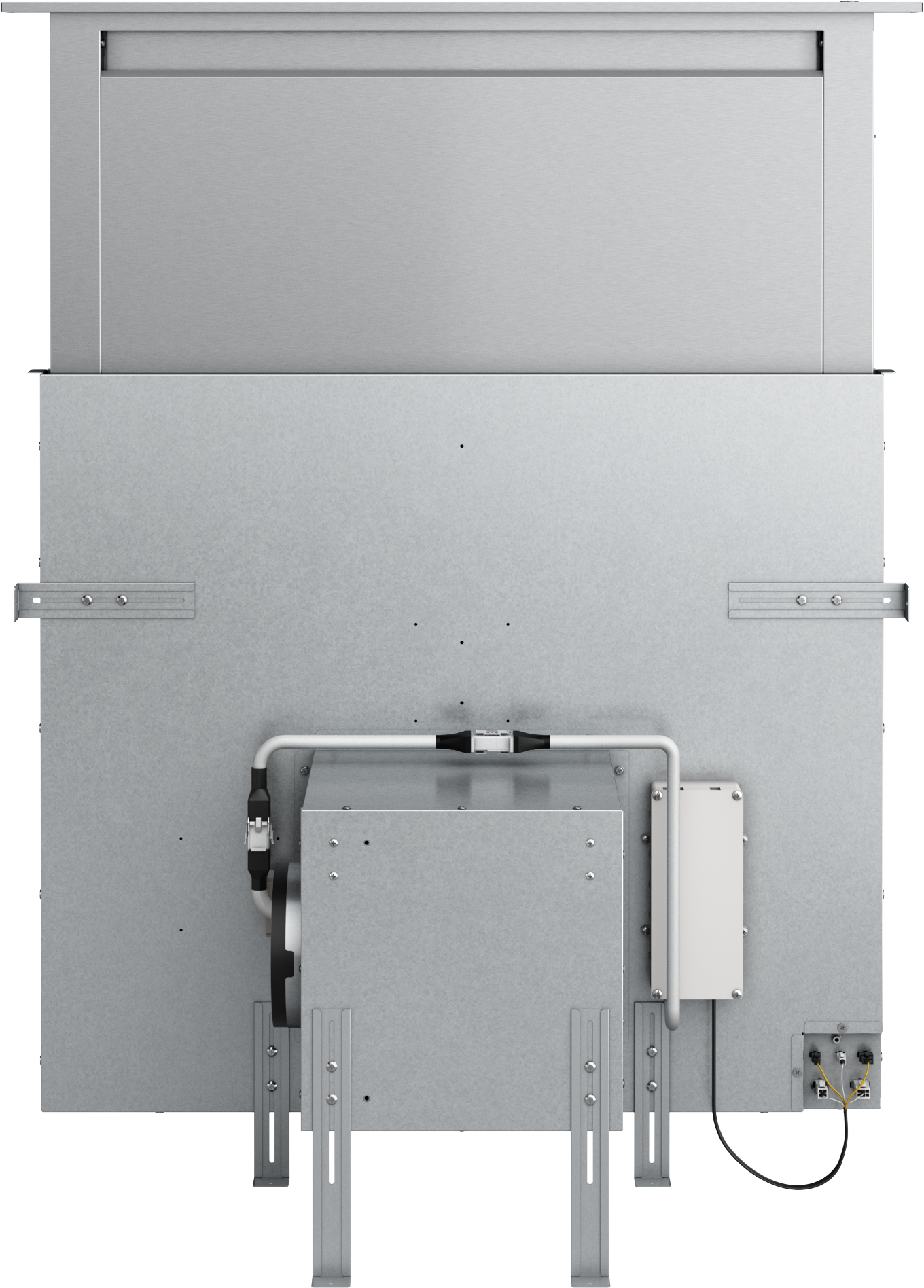

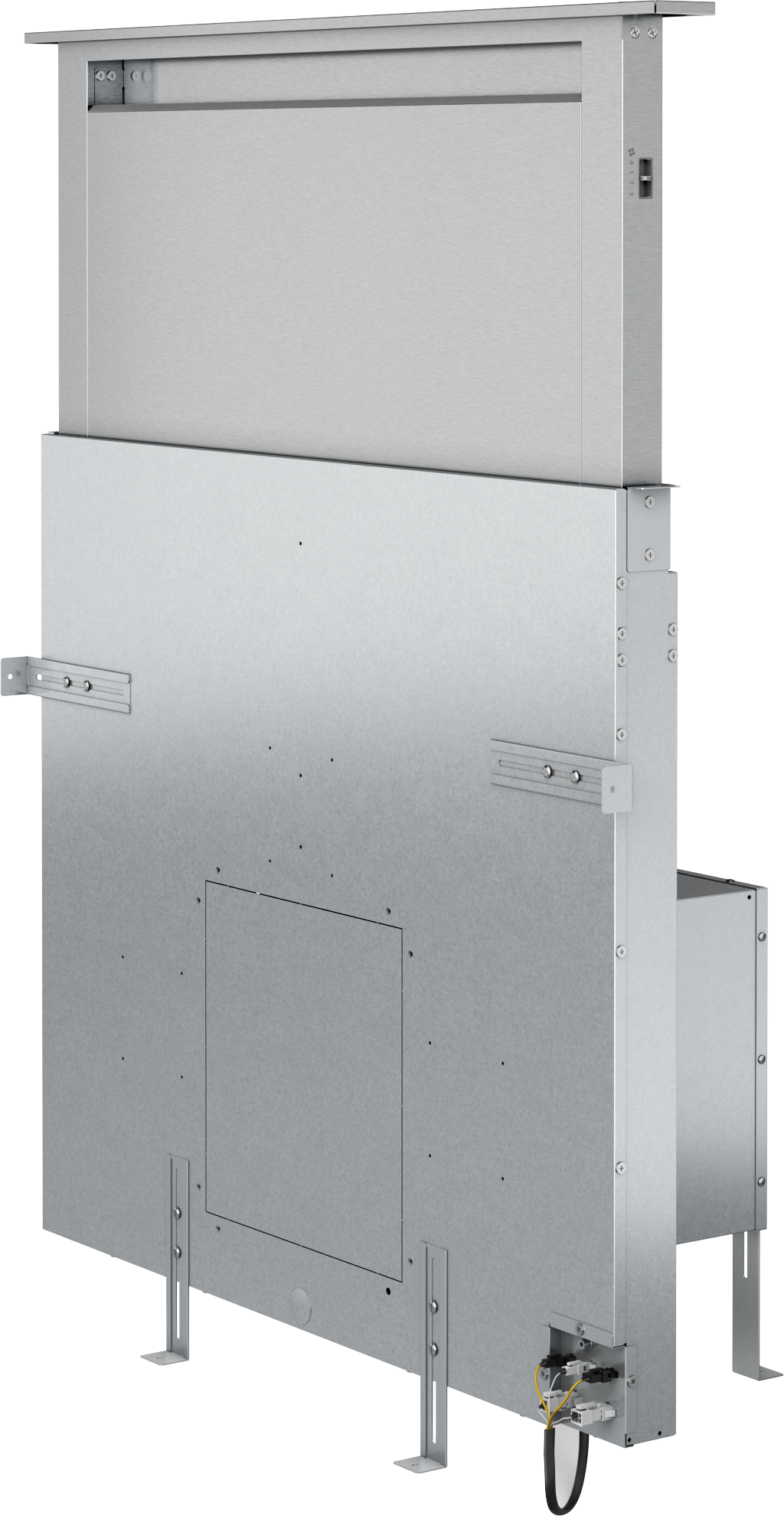

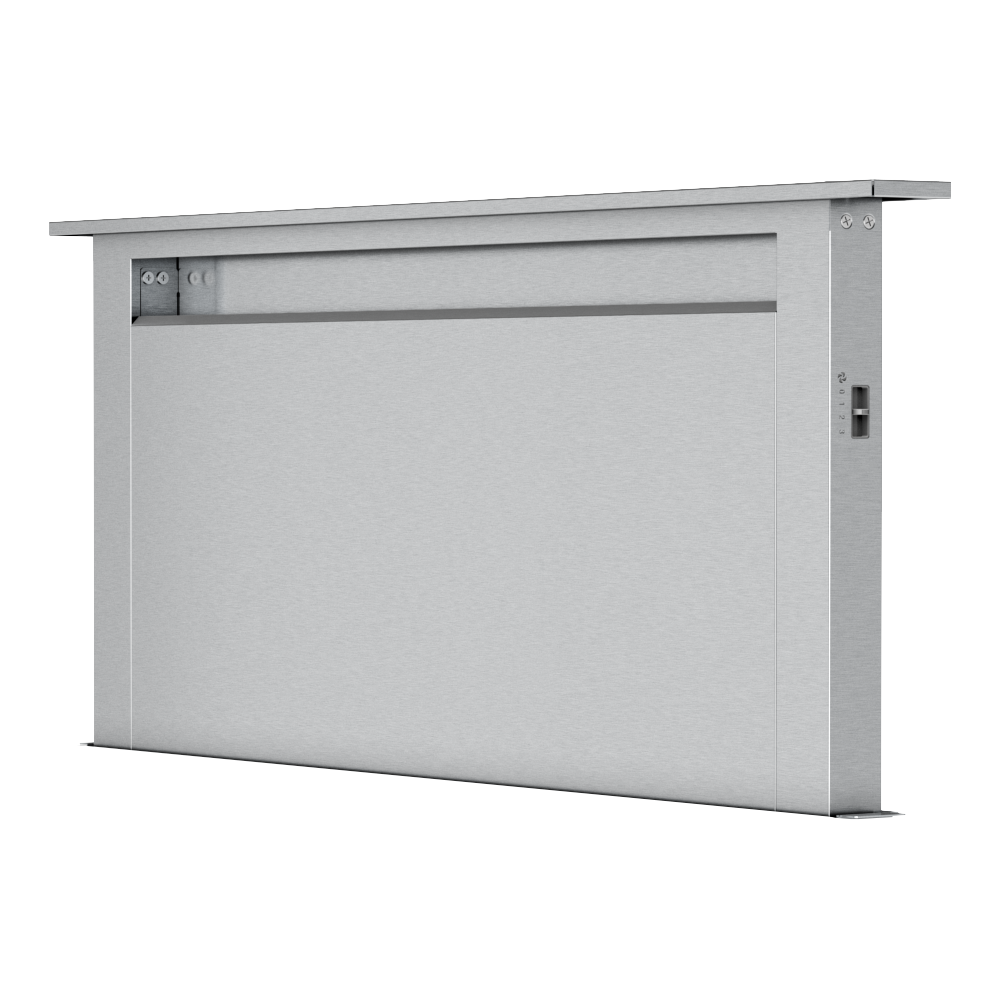

Treviso Downdraft, 14" rise, 36" Width, SS, 600 CFM
Treviso Downdraft, 14" rise, 36" Width, SS, 600 CFM
Everyday Price
$1,749.00
Sale Price
$1,439.10
Total Savings
$309.90
Extended Service Contracts
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 36
Height: 14
Depth: 2.5
Color
Also Comes In
Stainless Steel
$1,349.10
Features
- 14" Chimney Rise

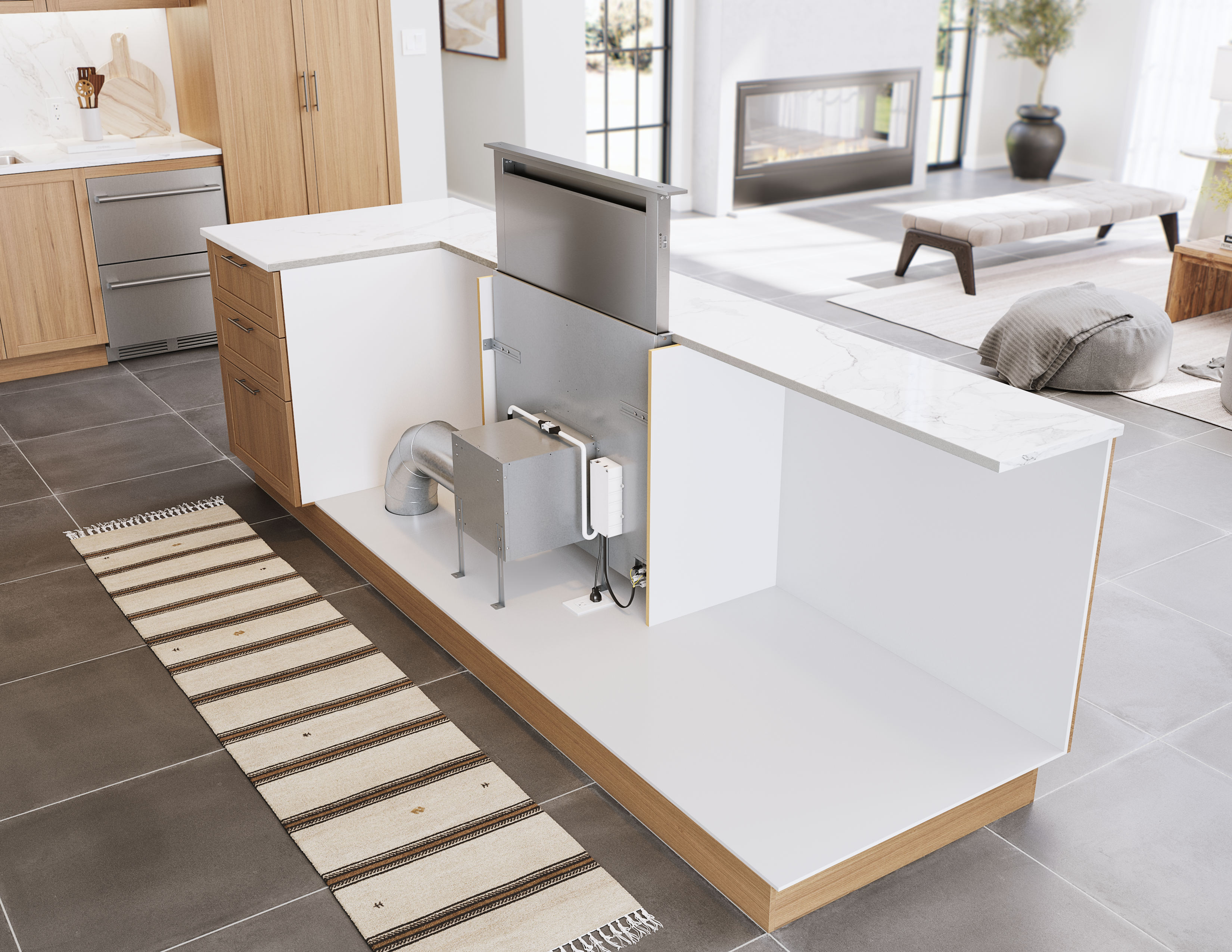

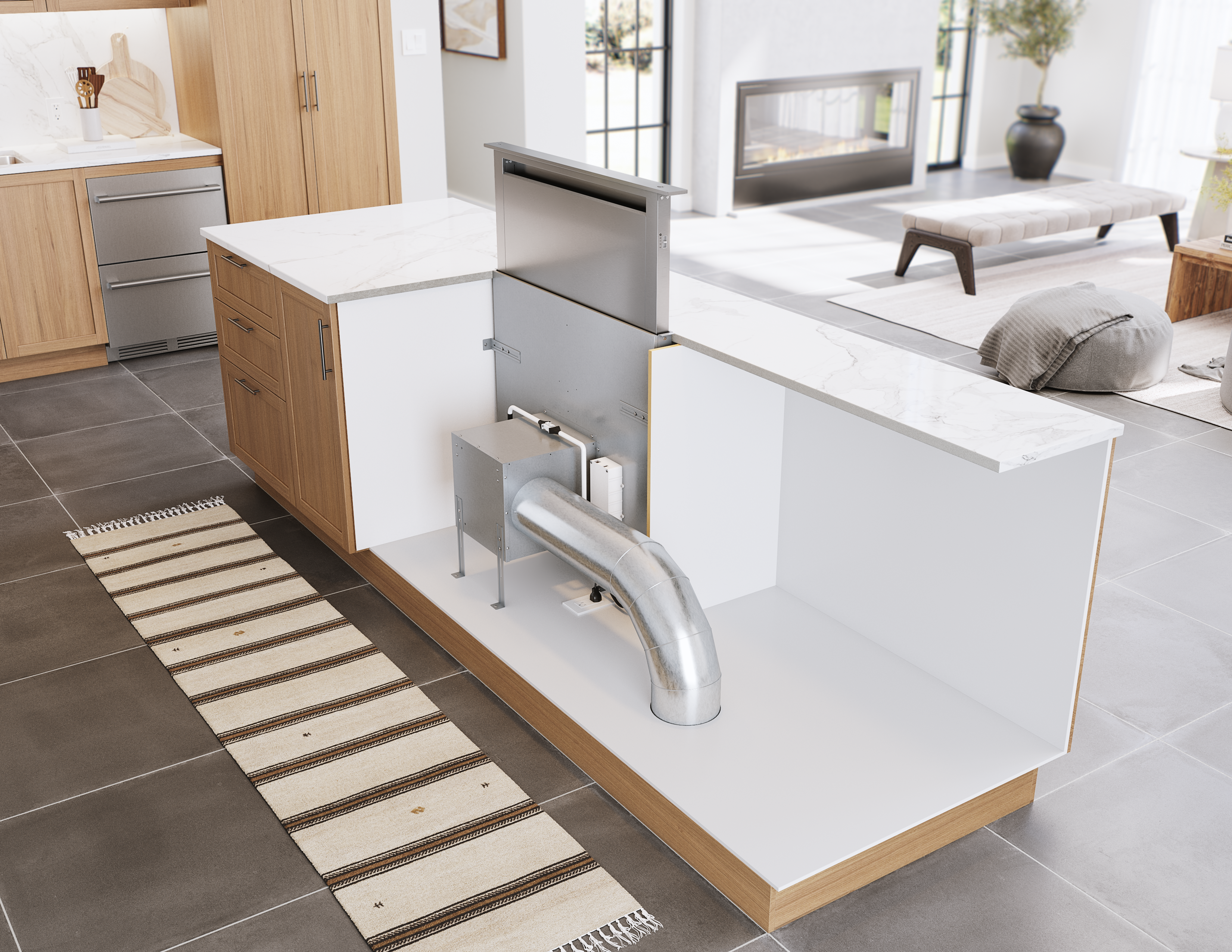

- 3-Way Ducting

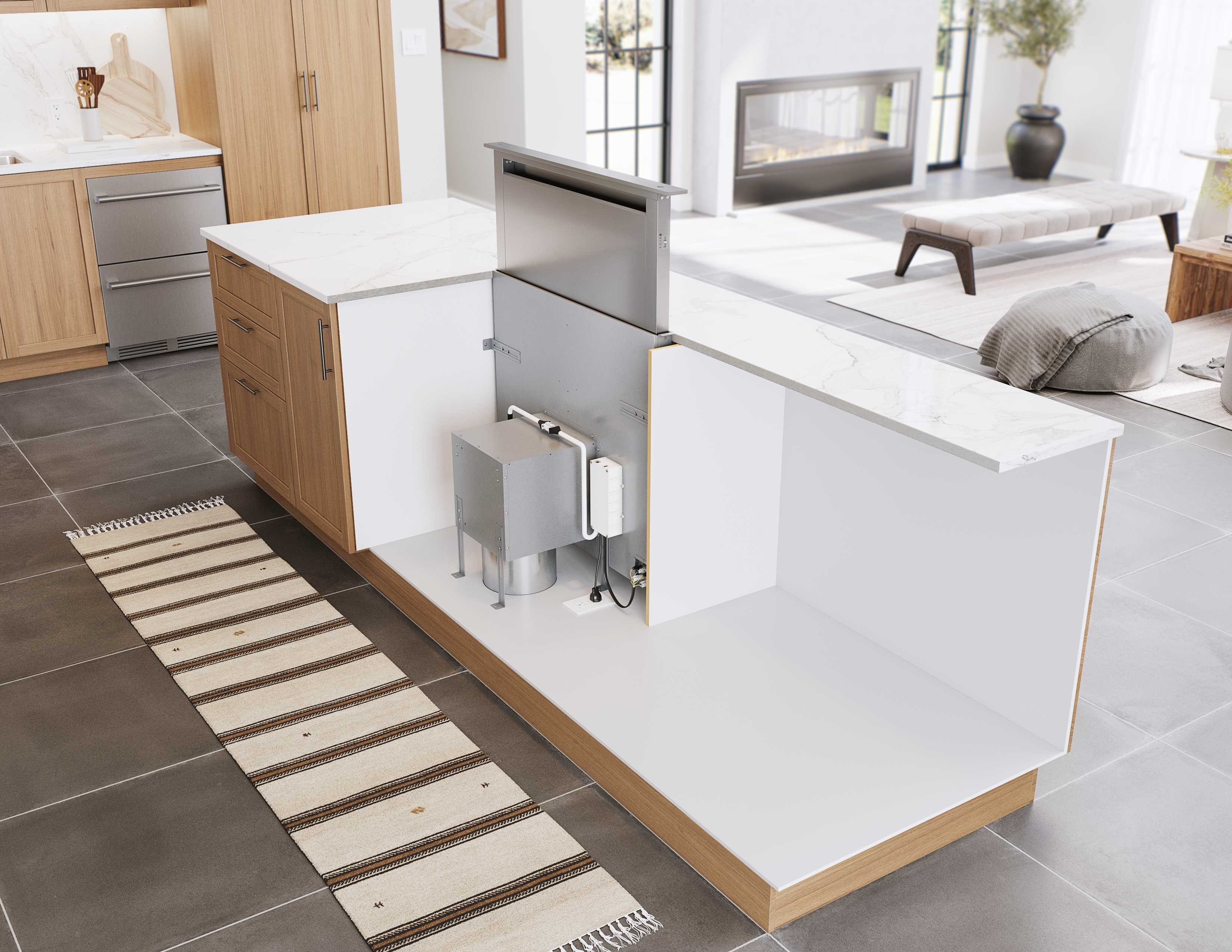

- Reversible Blower Housing

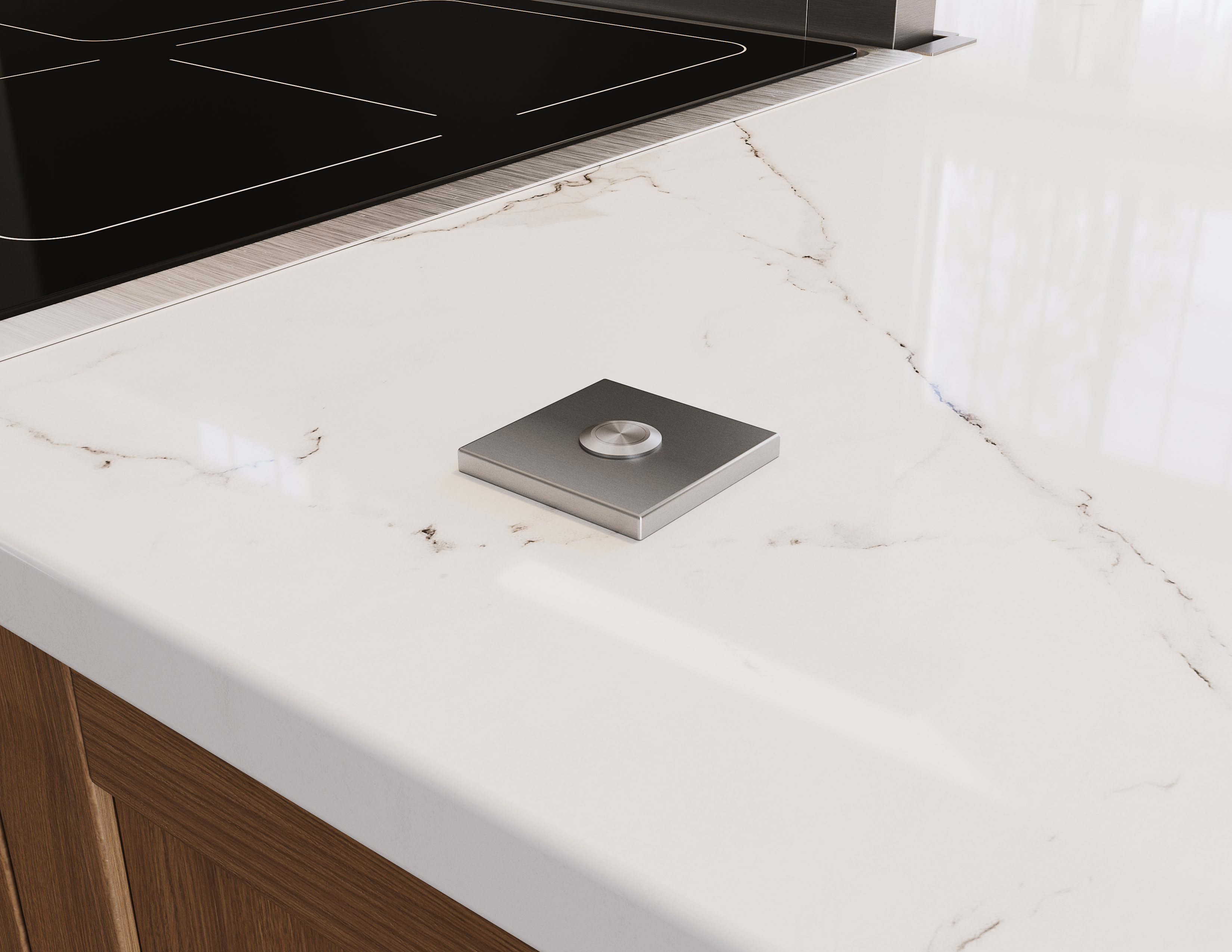

- Mechanical Slide Controls
- Auto On/Off Feature
- Airflow Control Technology™ (ACT™)

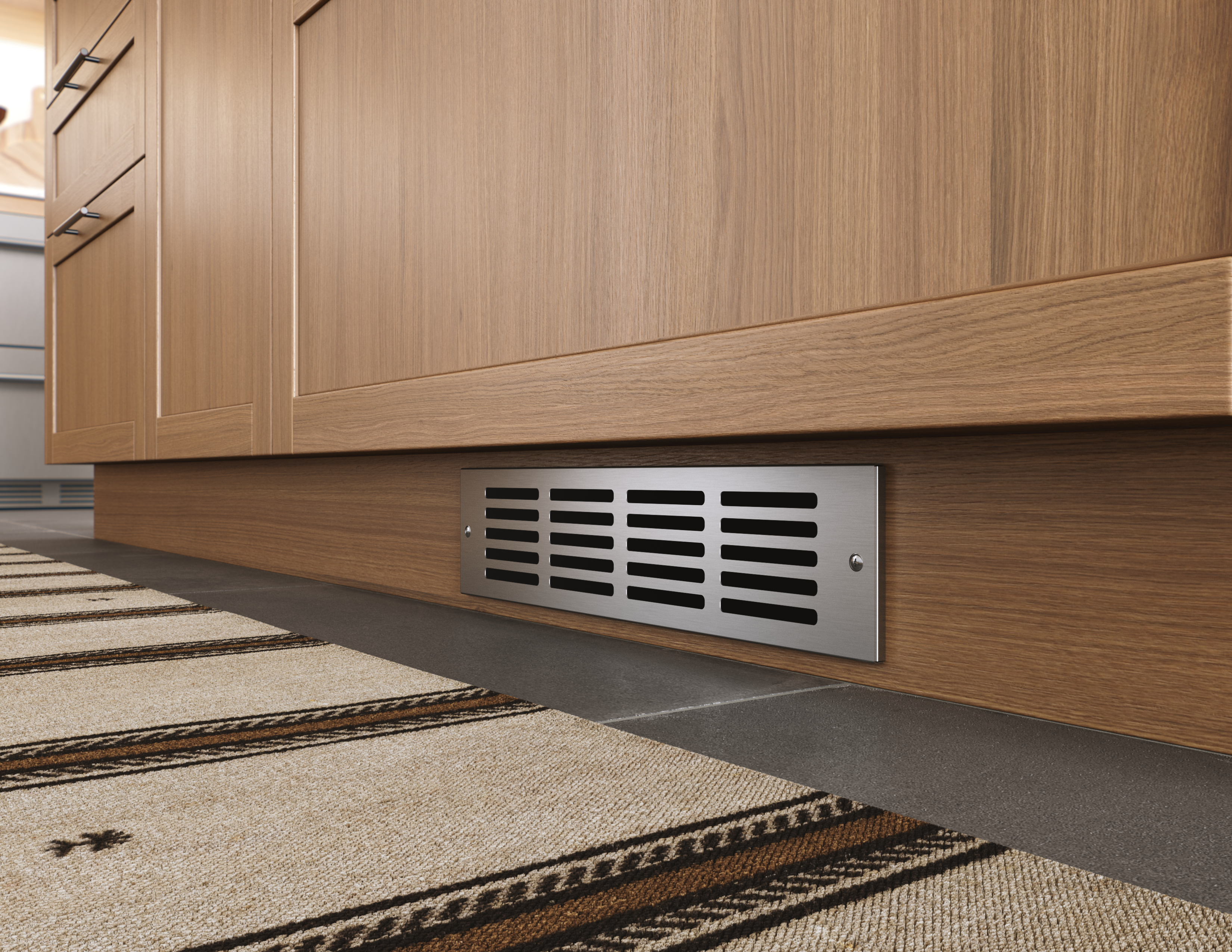

- Optional Ductless Recirculating Kit
- Optional ADA-Compliant Remote Up/Down Remote Control
Product Description

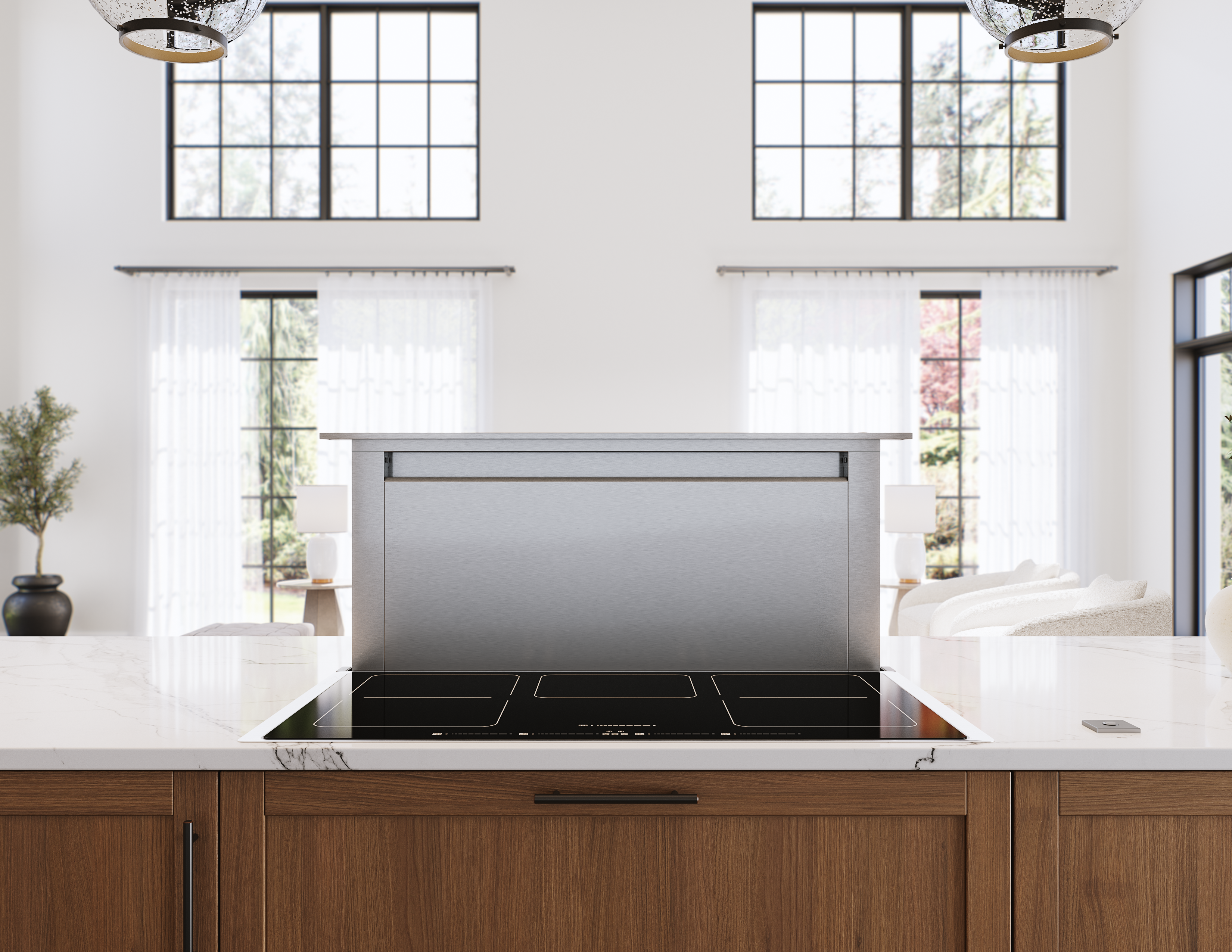

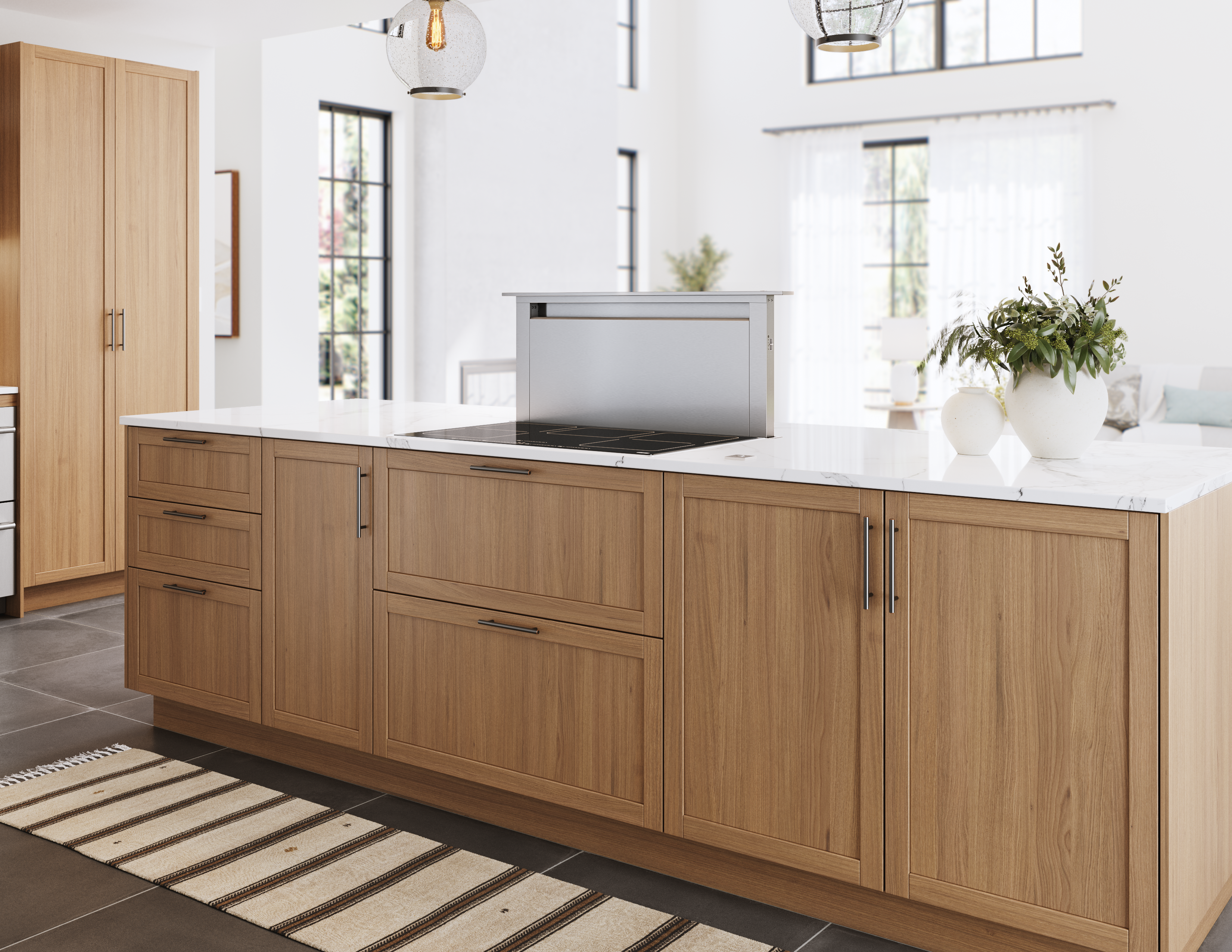

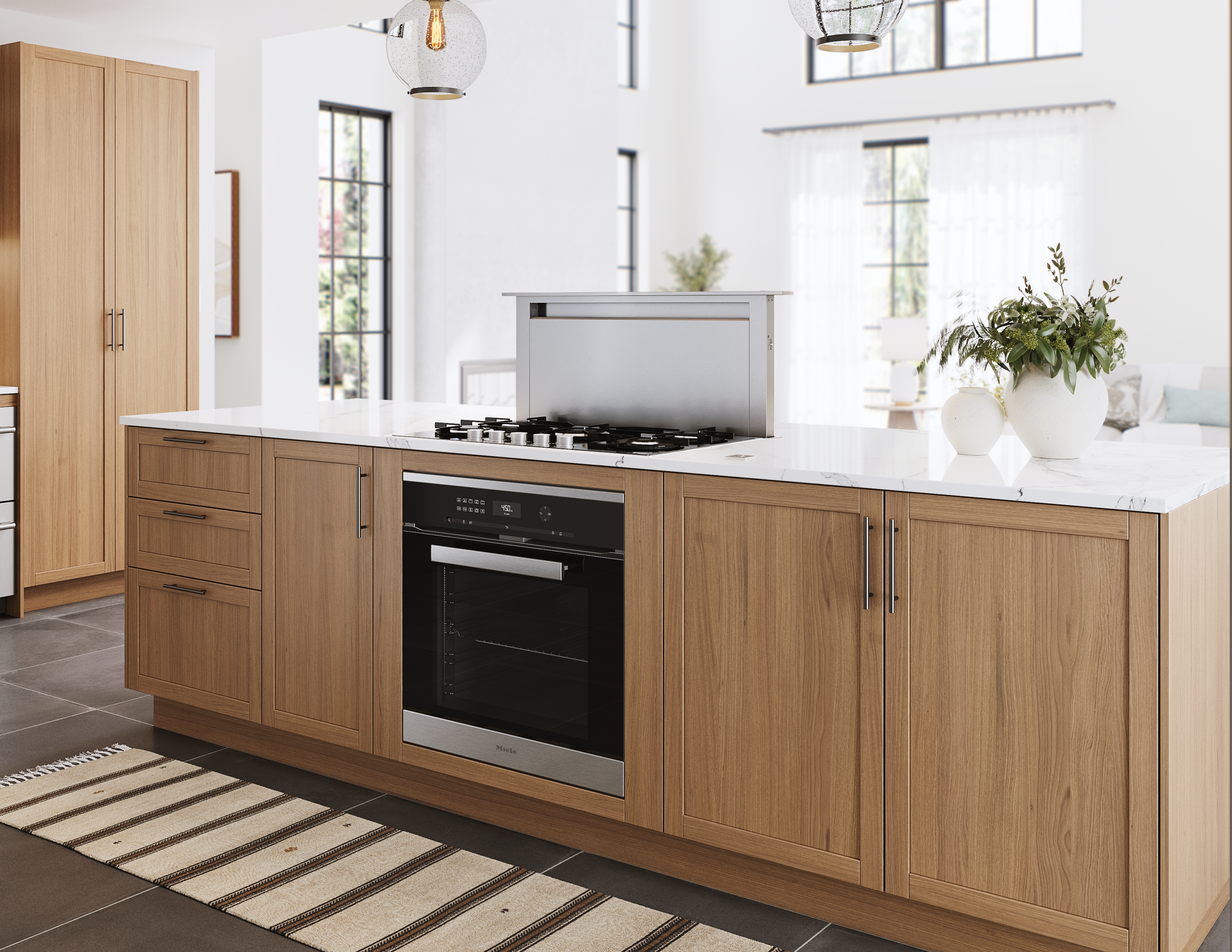

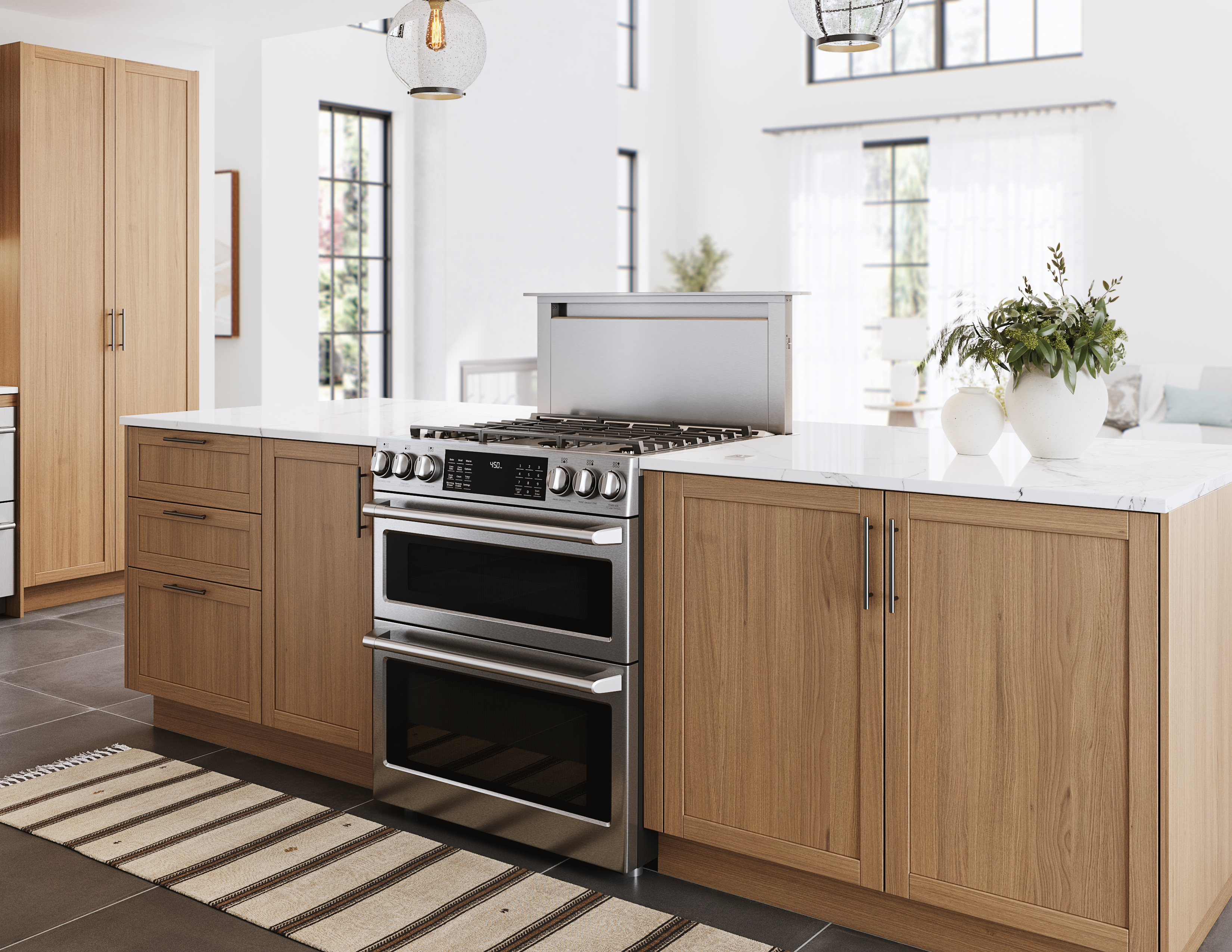

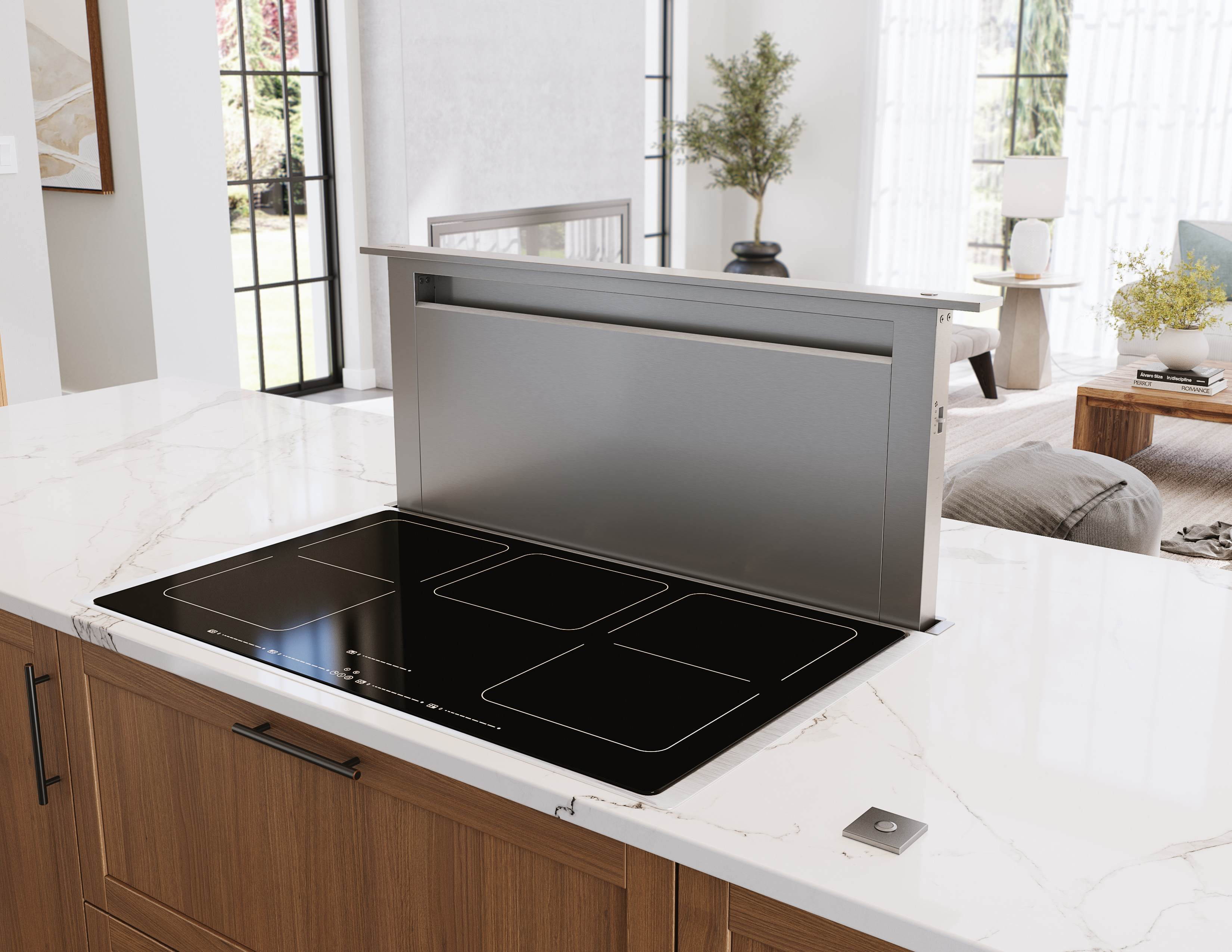

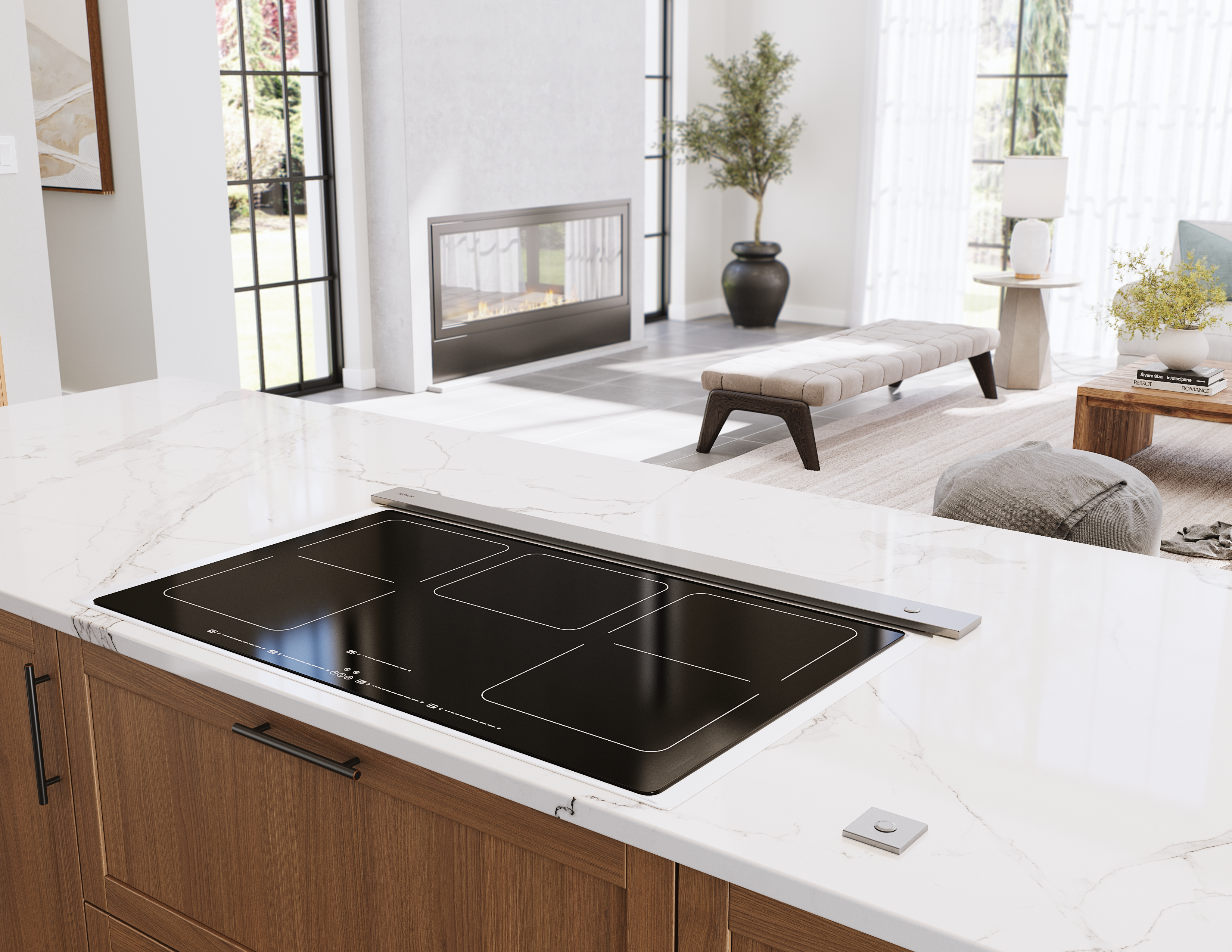

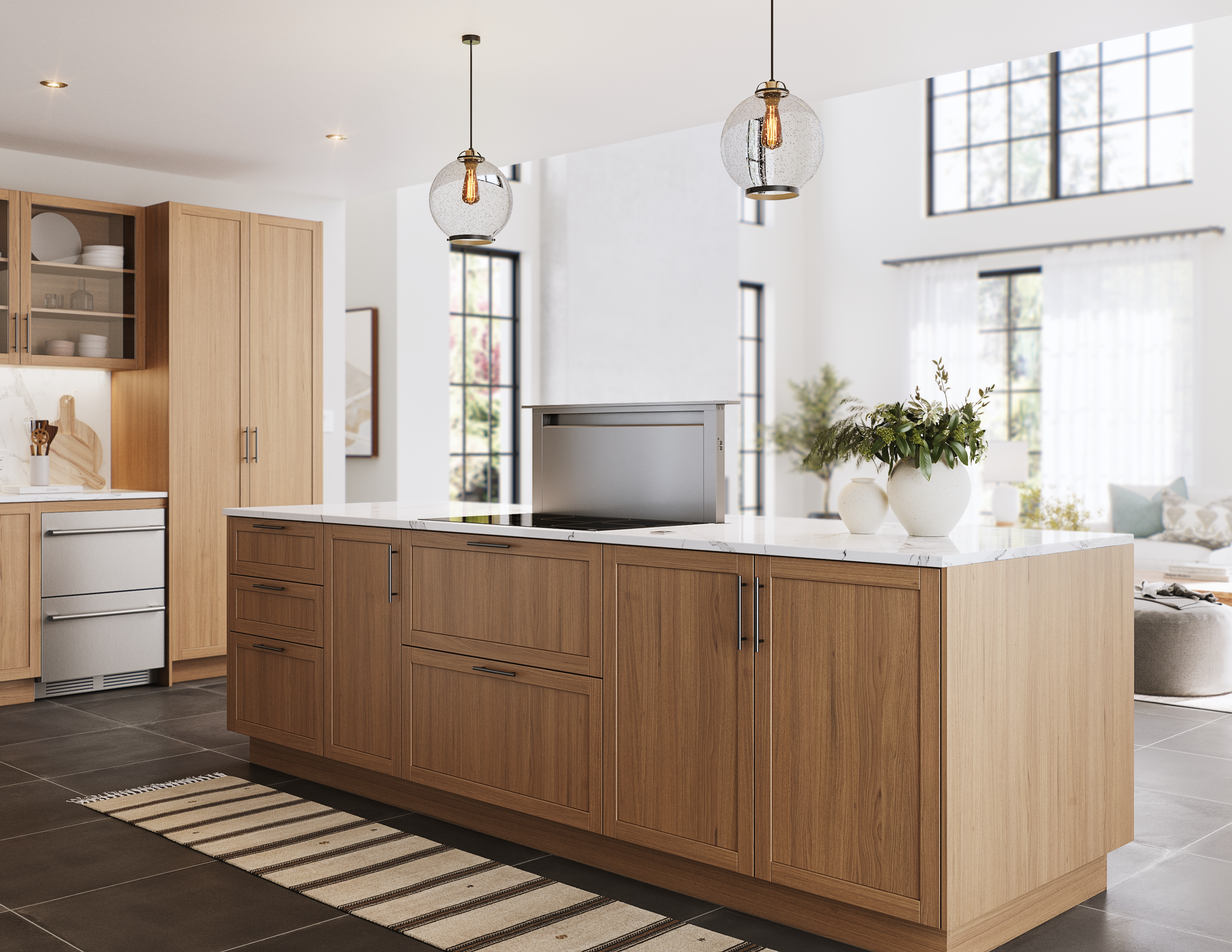

The Treviso Downdraft is chic, simple, and simply spectacular. Out of sight when not in use for those coveted open kitchen sightlines, this one-and-done hidden downdraft has everything you need, and nothing you don’t. A sleek, efficient louver makes this a very visually pleasing solution for nearly any kitchen.
Specification
| General | |
| Blower Included | Yes |
| Blower CFM w/ACT | 200, 390 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 2 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Downdraft |
| For Outdoor Use | No |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | None |
| Grease Filter Type | Mesh |
| Duct Discharge | Horizontal |
| Duct Size; Horizontal in. | 6 |
| Voltage | 120 |
| Maximum Amperage | 3.2 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 2 / 1 |
| Compatible Appliances | DDA-0003, DDT-0136, ZRC-00TV, Z0F-C006, MUA006A |
| Bluetooth Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 384 |
| Certification | UL |
| Nominal Width in. | 36 |
| Net Width in. | 36 |
| Net Depth in. | 2.5 |
| Net Height in. | 14 |
| Weight lbs. | 60.6 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Clean Filter Alert | No |
| Duct Type | Horizontal |
| Lighting Feature | None |
