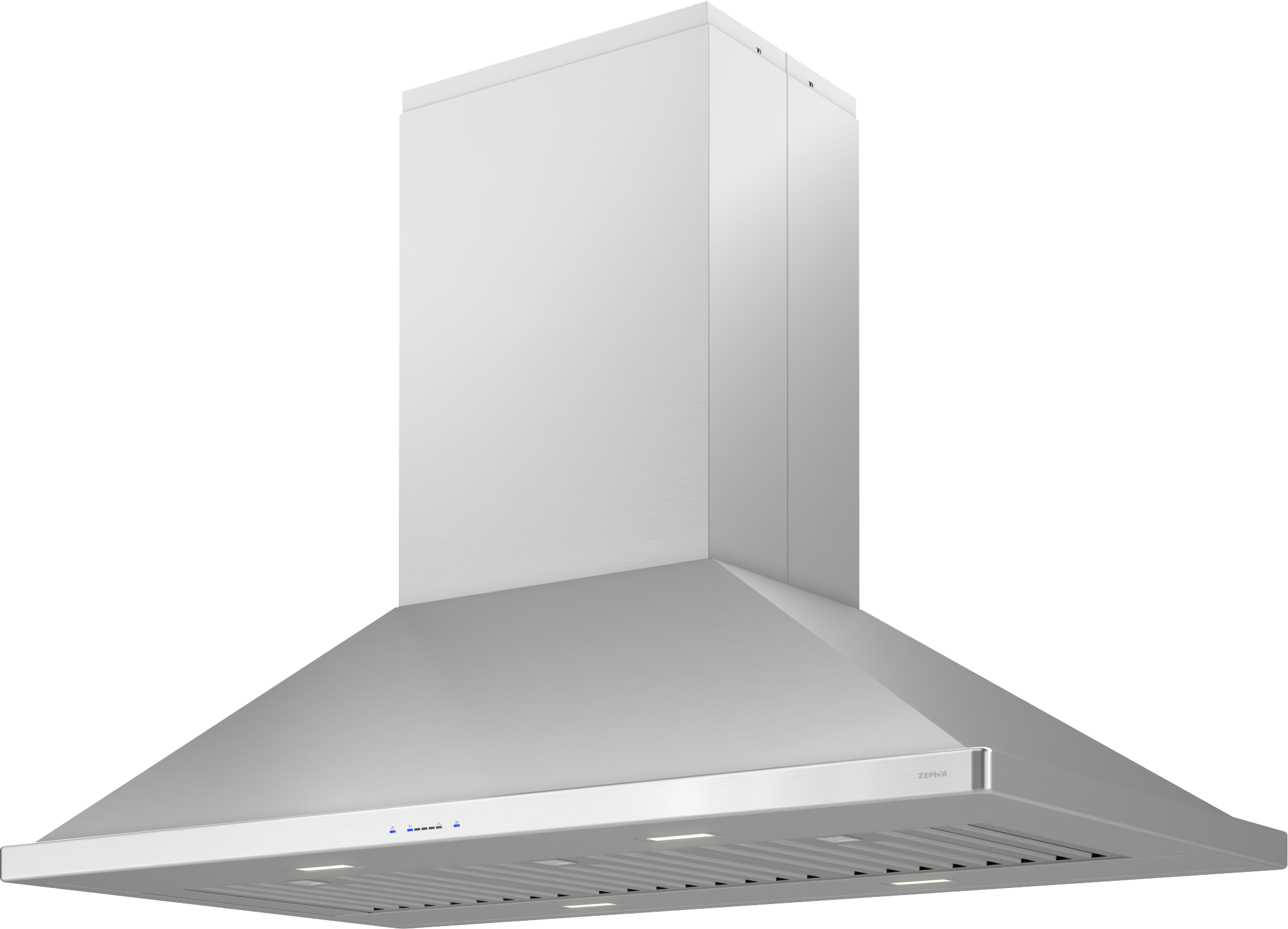

Siena Pro Island, 48in, SS, LED, ACT
Siena Pro Island, 48in, SS, LED, ACT
Everyday Price
$2,849.00
Sale Price
$2,699.00
Total Savings
$150.00
Extended Service Contracts
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 48.875
Height: 32.5
Depth: 28
Color
Features
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- ICON Touch Controls seamlessly integrate into the hoods stainless steel canopy, which lets users control functions such as the 5 speeds, delay-off, dual-level lighting, and auto reminders. With its blue LED indicator lights and sleek modern aesthetic, the ICON Touch Controls are the future of ventilation control technology.
- LumiLight LED lights are eco-friendly and built to last with a lifetime of more than 25,000 hours.
- The dual-level dimmable LEDs require less energy than traditional halogen lights, are cool to the touch, and provide uniform light distribution.
- Zephyrs Quick-Lock Installation System is an innovative, hassle-free method for installing island range hoods. A quick-lock motion lets the user assemble the frame, lift the hood and lock it into place on the frame and then assemble the 4-piece duct covers. This easy three-step process ensures the island hood is securely installed without additional build-out required. While most island range hood installations require at least three people, Zephyrs Quick-Lock Installation can be completed by one or two people.
- Hybrid baffle filters utilize stainless steel baffles for an improved aesthetic and aluminum mesh for efficient filtration.
- Extension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
Product Description
With its classic, professional-style design, Siena Pro island manages to encompass a wealth of features perfect for the culinary pro or any aspiring home chef. Equipped with magnetic duct covers, the unique Quick-Lock Installation System is easier than ever. Featuring a 1200-CFM blower, LumiLight LED lighting, Airflow Control Technology (ACT™), and an optional ADA-compliant remote control.
Specification
| General | |
| Blower Included | Yes |
| Blower CFM w/ACT | 590, 390 |
| Internal Blower 1 CFM | 1200 |
| Internal Blower 1 Min. Sones | 3.5 |
| Internal Blower 1 Max Sones | 9 |
| Minimum CFM | 390 |
| Installation Type | Island |
| For Outdoor Use | No |
| Controls Type | ICON Touch® |
| Blower Speeds | 5 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 4 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Hybrid Baffle |
| Compatible Mesh or Baffle Filter Part Number | 50200050 |
| Duct Discharge | Vertical |
| Duct Size; Vertical in. | 10 |
| Mounting Height Above Cooktop in. | 24 - 34 |
| Voltage | 120 |
| Maximum Amperage | 8 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | Z1C-01SL, MUA010A, RC-0002 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 960 |
| Certification | UL |
| Nominal Width in. | 48 |
| Net Width in. | 48.875 |
| Net Depth in. | 28 |
| Net Height in. | 32.5 |
| Weight lbs. | 122 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 9 ft. |
| Chimney Height in. | 32.5 |
| Chimney Width in. | 15.6875 |
| Chimney Depth in. | 11.9375 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
