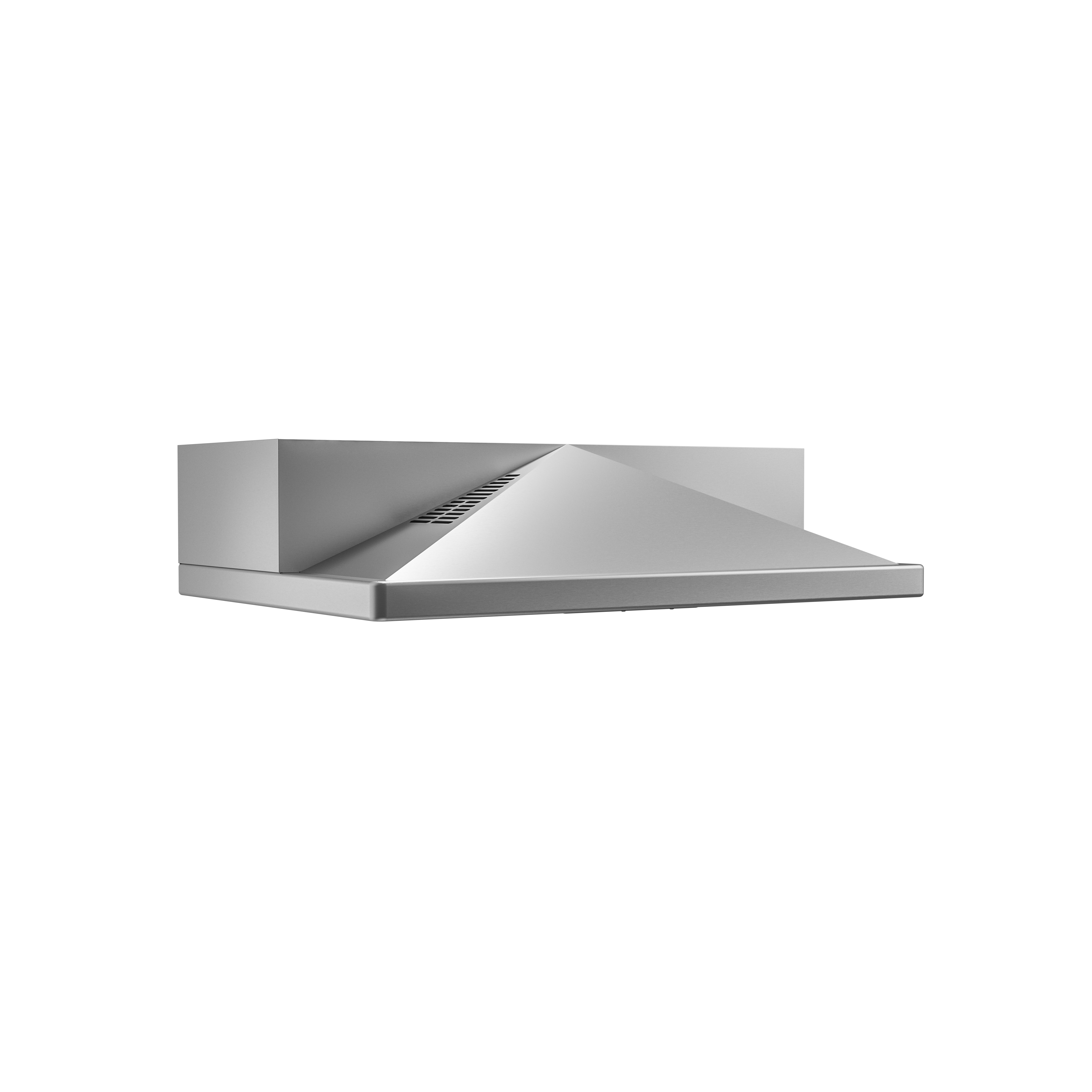

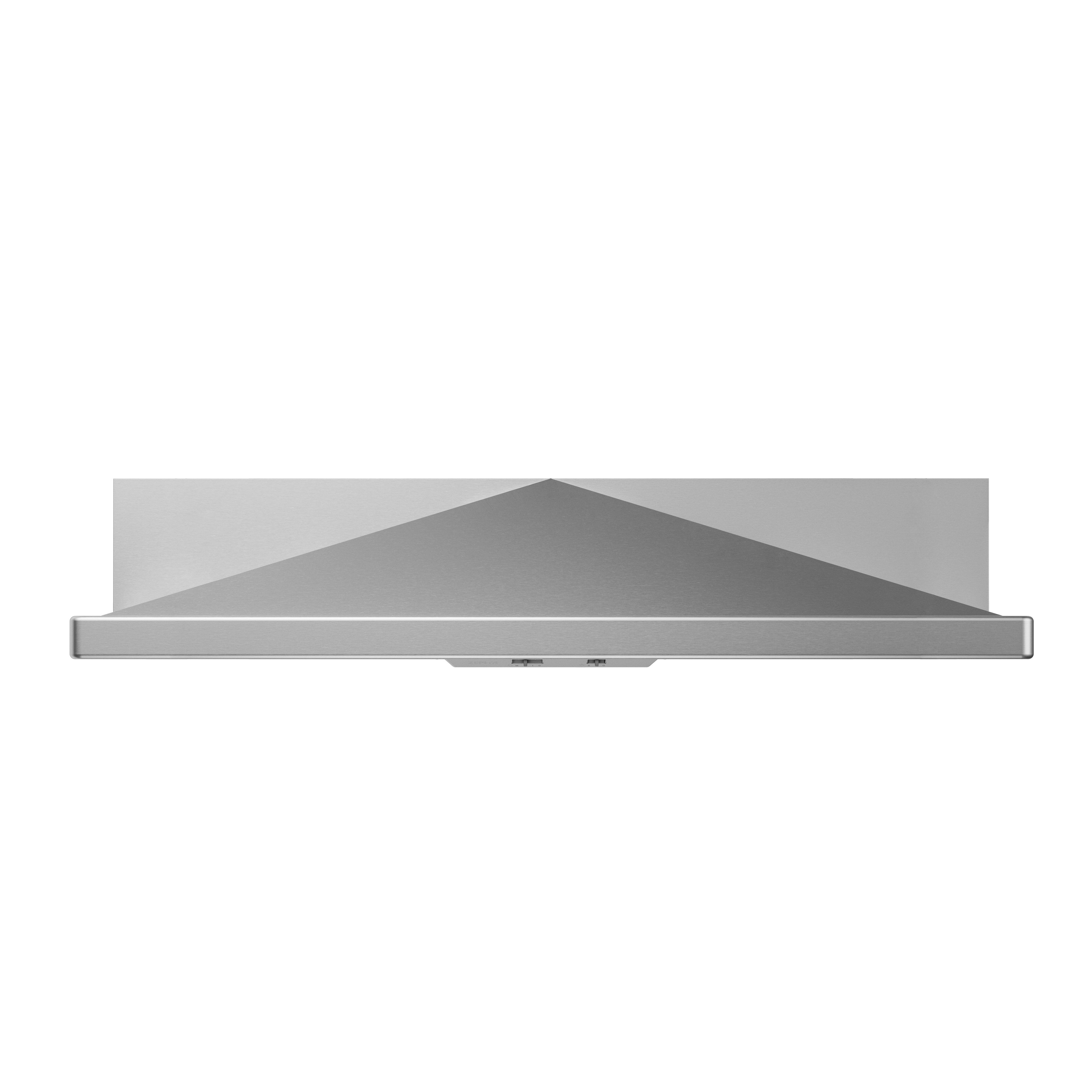

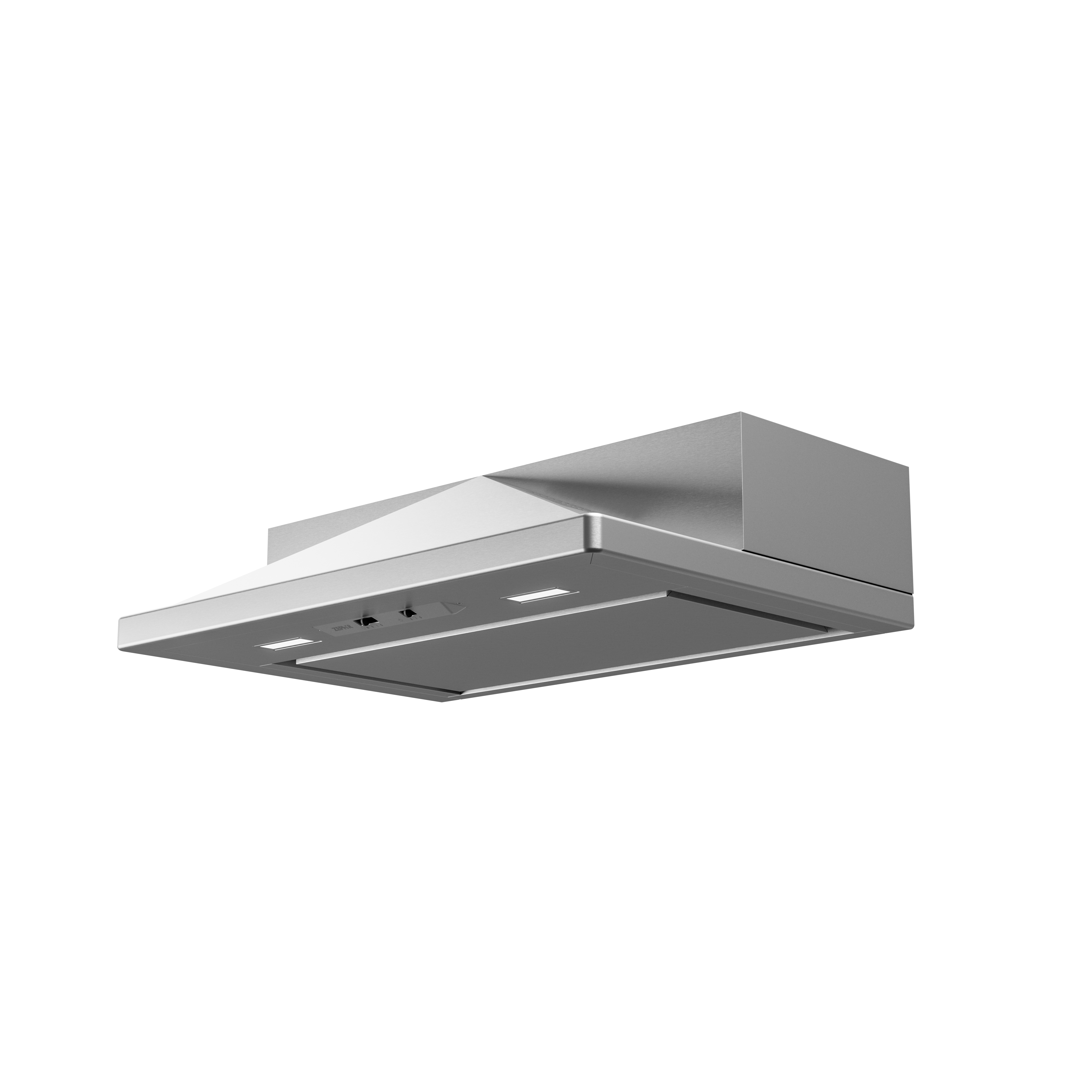

Pyramid, 30in, SS, LED, PAS, 290 CFM
Pyramid, 30in, SS, LED, PAS, 290 CFM
Everyday Price
$649.00
Sale Price
$599.00
Total Savings
$50.00
Extended Service Contracts
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 29.9375
Height: 7.375
Depth: 21
Color
Also Comes In
Stainless Steel
$649.00
Stainless Steel
$599.00
Features
- LumiLight LED Lighting
- Mechanical Slide Controls
- Vertical or horizontal ducting
- Dual-Level Lighting
- Dishwasher Safe Aluminum Mesh Filters

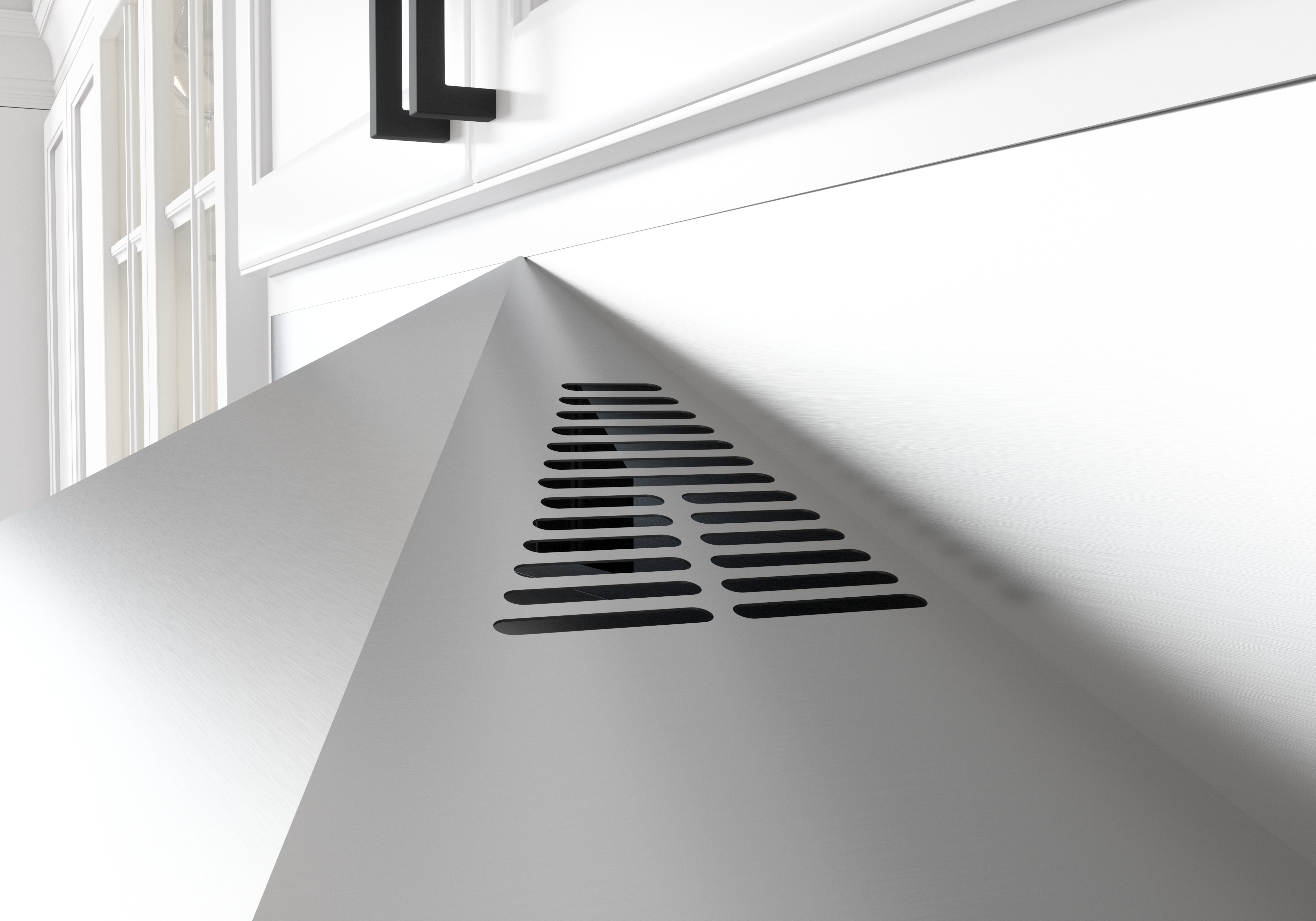

- Perimeter Aspiration System
- Optional Ductless Recirculating Kit
Product Description

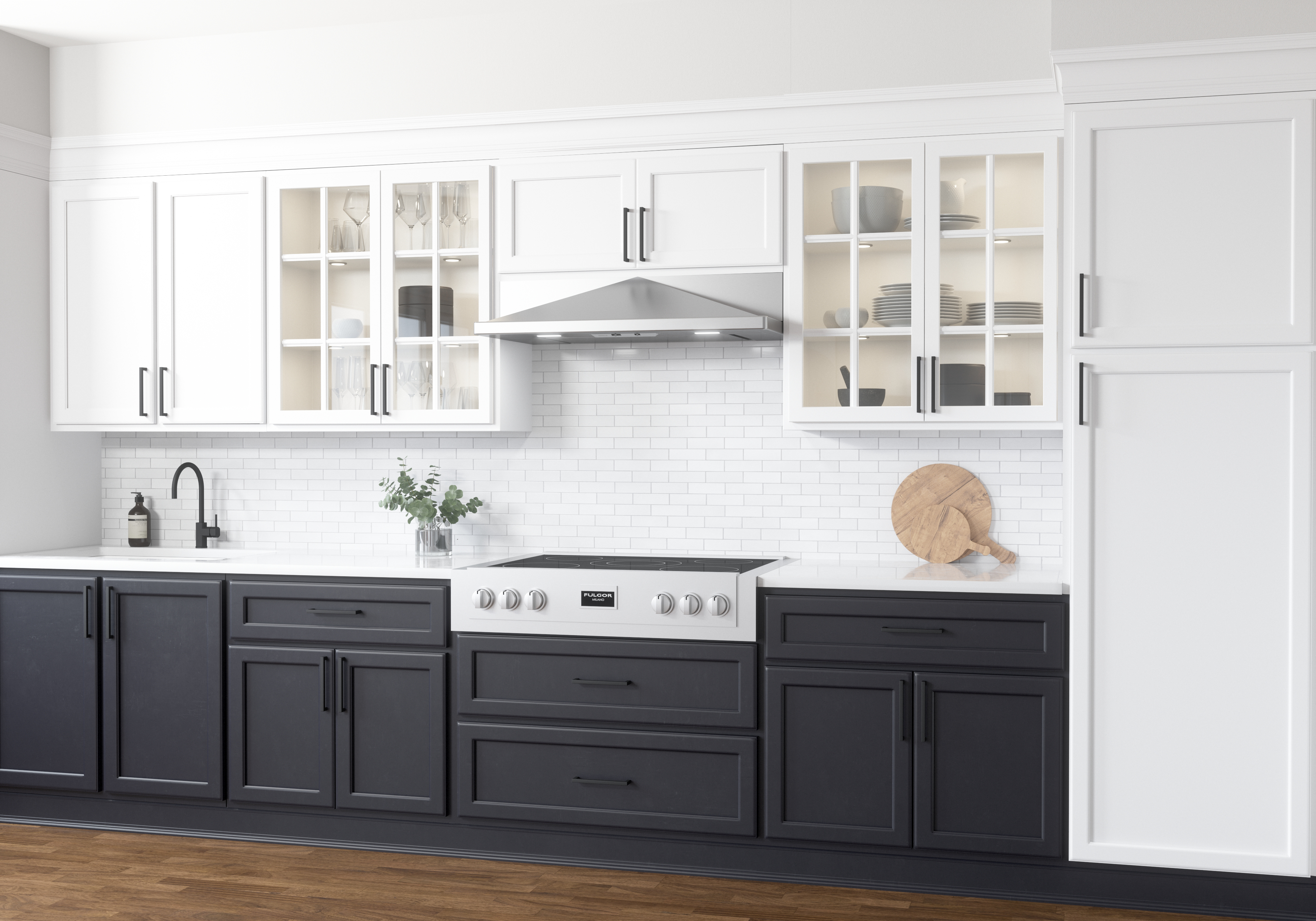

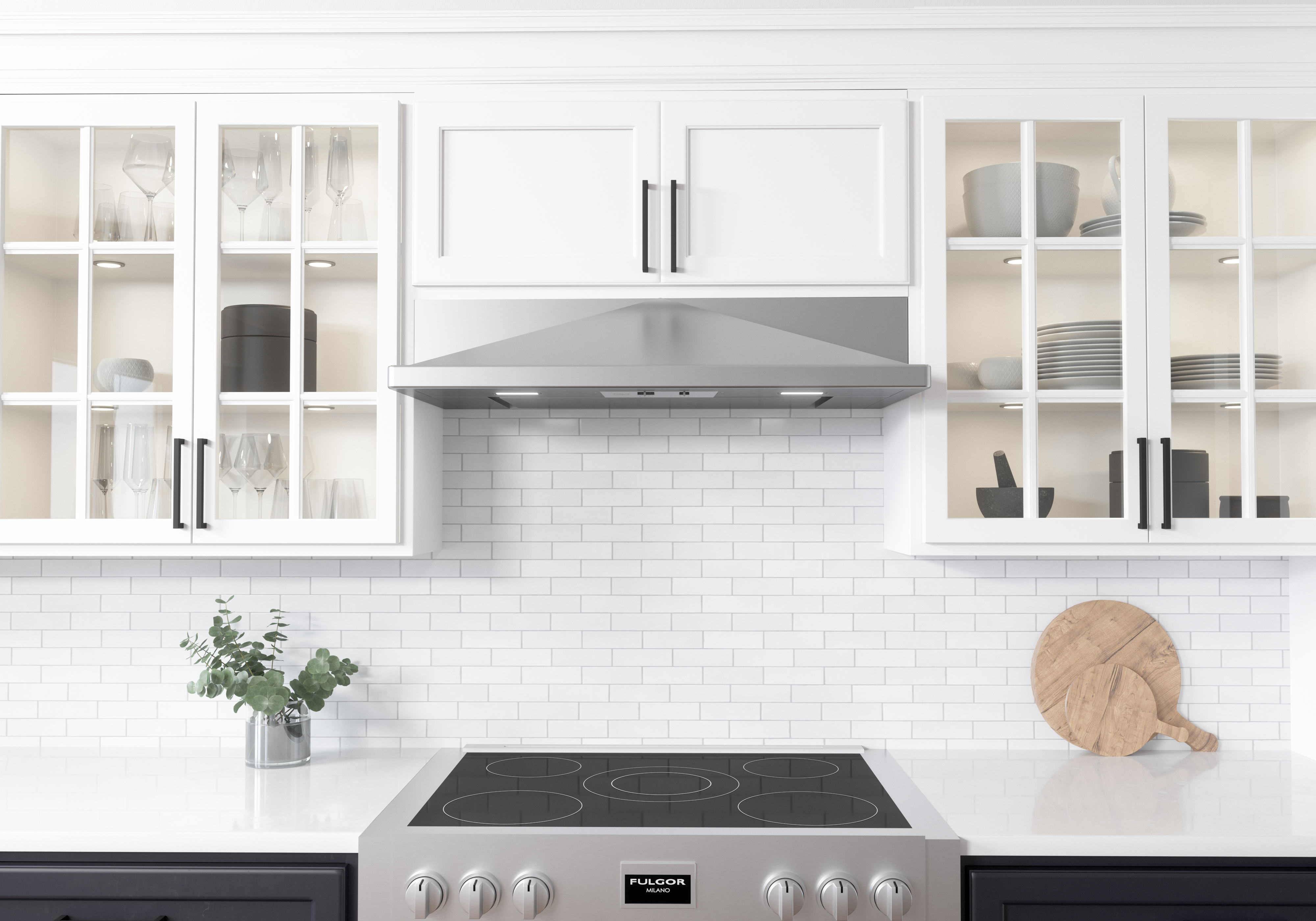

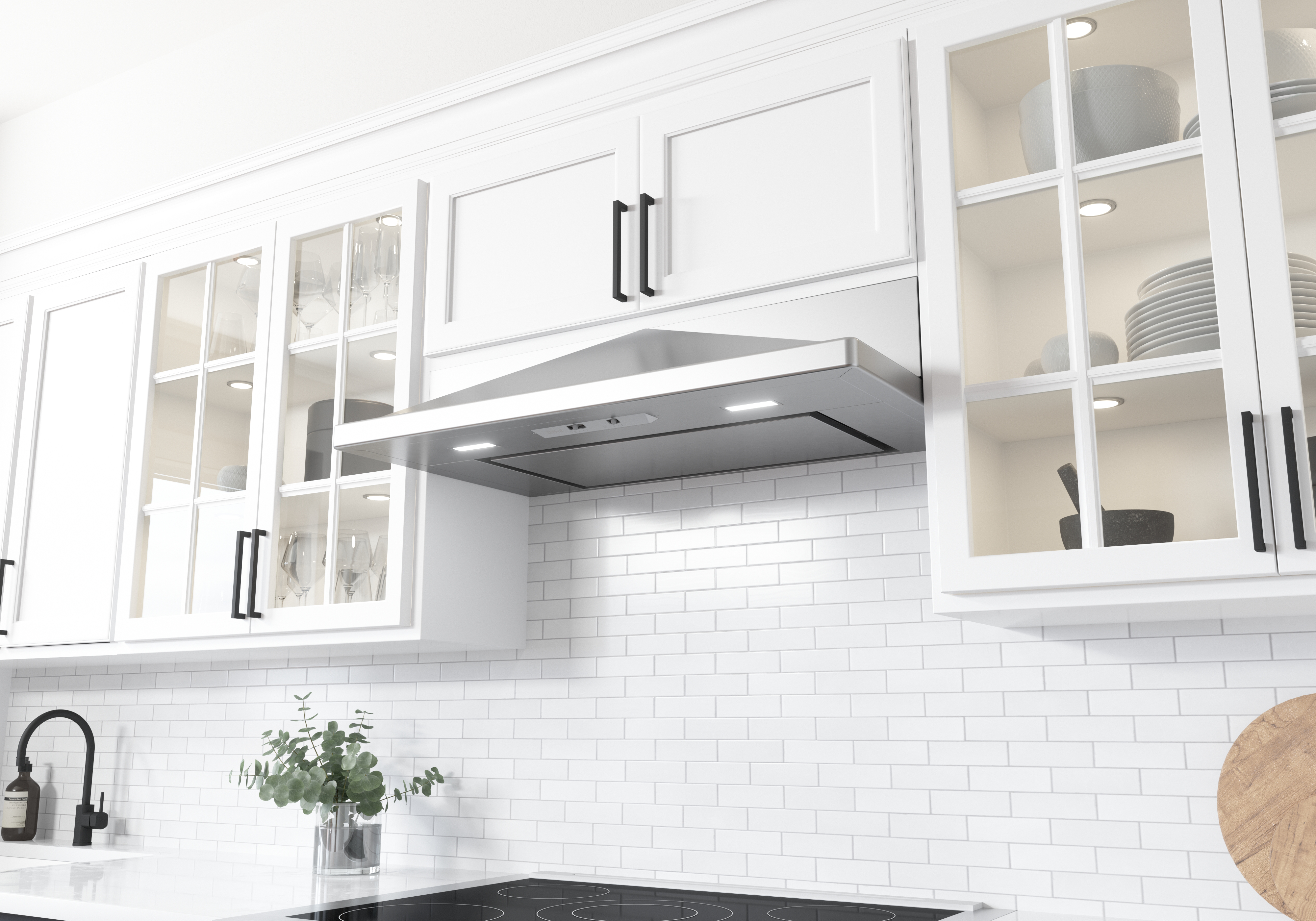

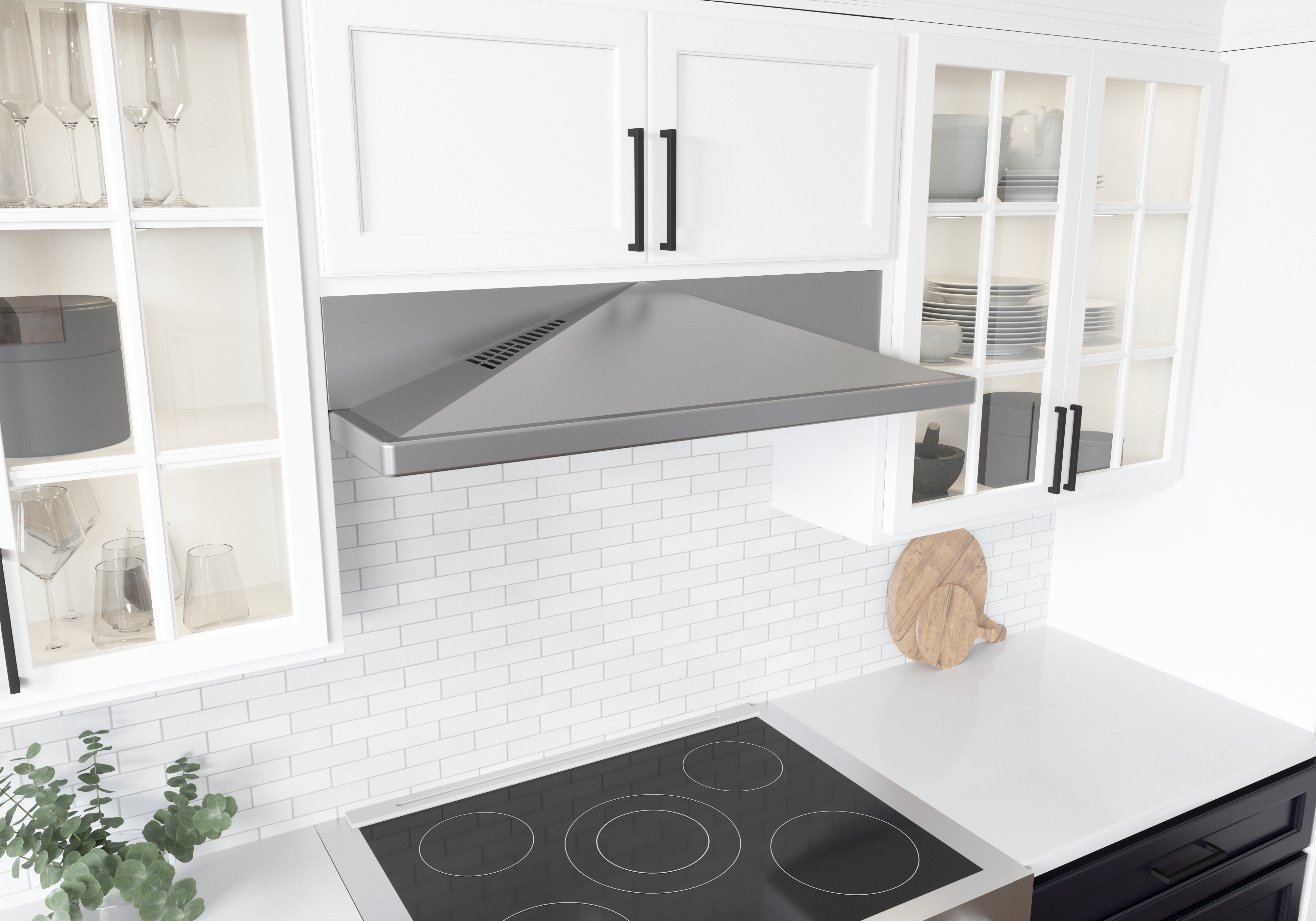

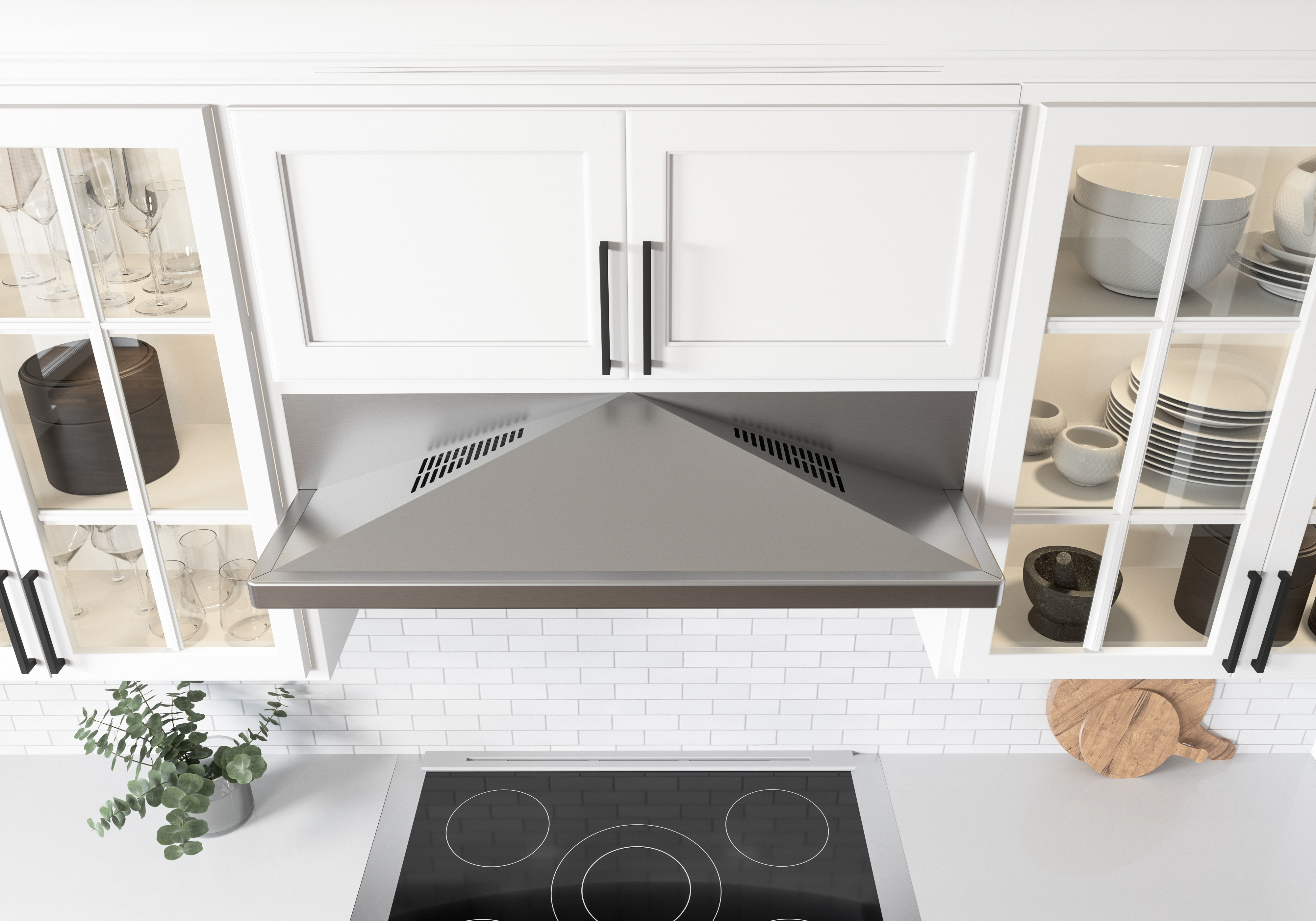

Classic, architectural lines meet at an apex to energize the familiar look of the chimney style under-cabinet hood. This expressive-yet-utilitarian design is upgraded with our Perimeter Aspiration System for the ultimate fusion of style and performance. Dual-level LumiLight LED lights illuminate the surface below while the 12″ depth ensures a true fit with popular cabinet styles.
Specification
| General | |
| Blower Included | Yes |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Min. Sones | 1.1 |
| Internal Blower 1 Max Sones | 3.2 |
| Minimum CFM | 190 |
| Installation Type | Under Cabinet |
| For Outdoor Use | No |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal in. | 3.25 x 10 |
| Duct Size; Vertical in. | 7, 3.25 x 10 |
| Mounting Height Above Cooktop in. | 24 - 32 |
| Voltage | 120 |
| Maximum Amperage | 2 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-00PY, Z0F-C009, AK1710 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 240 |
| Certification | UL |
| Nominal Width in. | 30 |
| Net Width in. | 29.9375 |
| Net Depth in. | 21 |
| Net Height in. | 7.375 |
| Weight lbs. | 31.2 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Clean Filter Alert | No |
| Duct Type | Vertical |
| Duct Type 2 | Horizontal |
