Pisa, UC, 24", Wht+Glass, 290 CFM
Pisa, UC, 24", Wht+Glass, 290 CFM
Sale Price
$579.00
Extended Service Contracts
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 24.9375
Height: 1.5
Depth: 11.9375 - 18.75
Color
Features
- Low-profile body
- Optional Ductless Recirculating Kit
- Vertical or horizontal ducting
Product Description

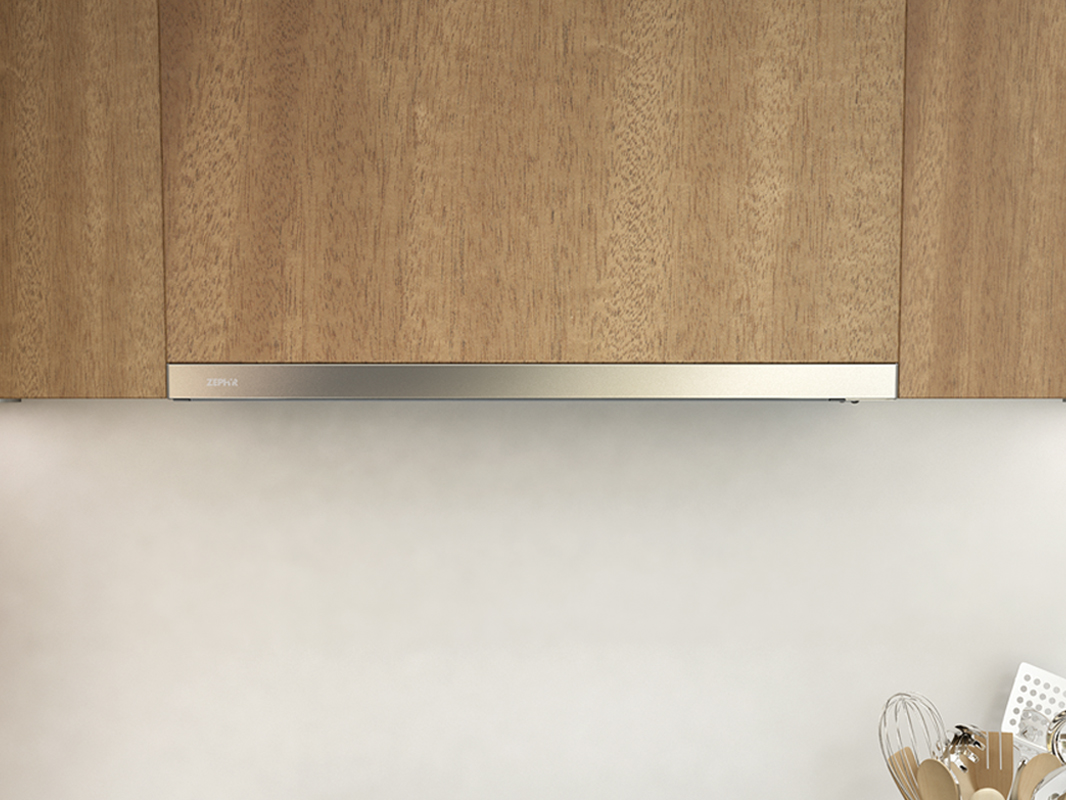

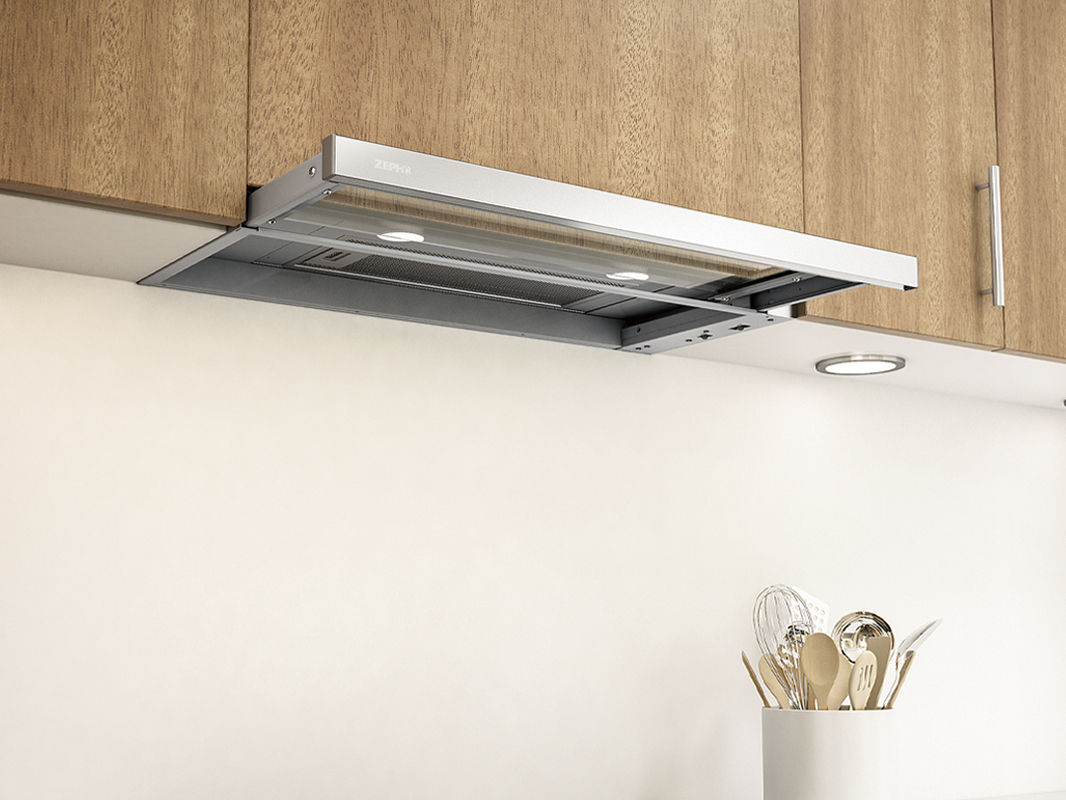

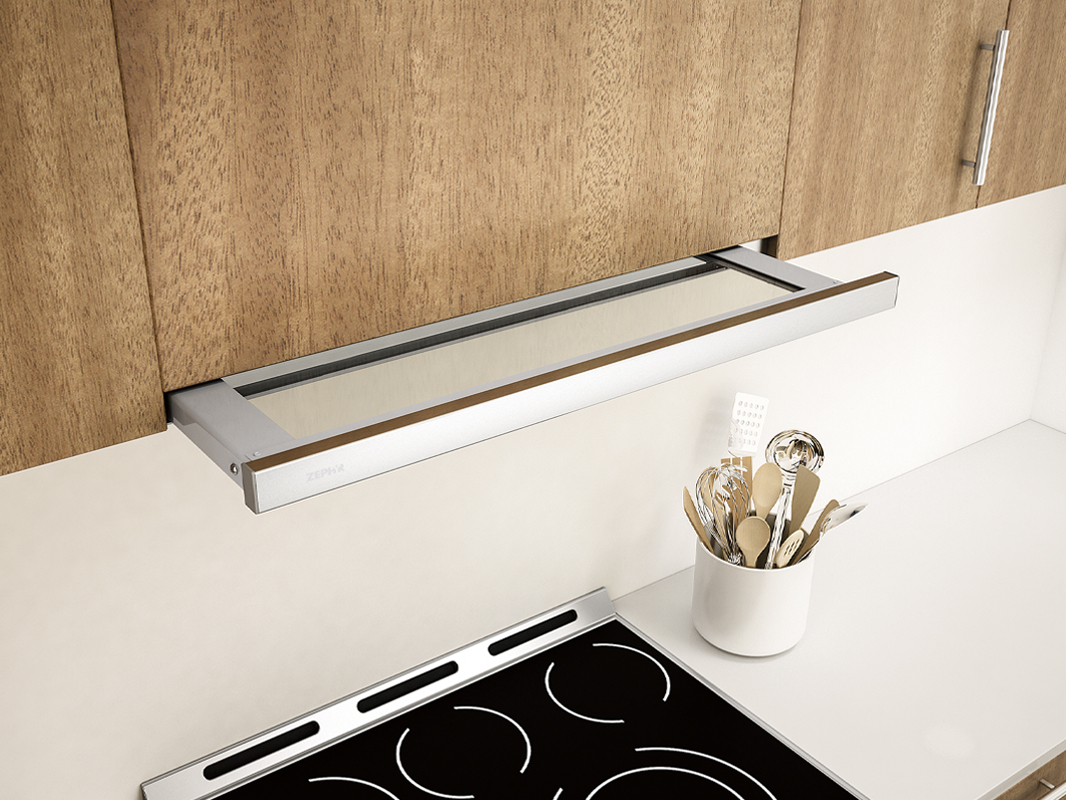

Tucked neatly out of sight within your cabinetry, Pisa is a minimal alternative to your typical under-cabinet range hood. Powered by the strength of a 500-CFM or 290-CFM blower, Pisa’s low-profile body delivers stunning design and quality performance. Its retractable visor helps in the capture of air and puts control at your fingertips. Pisa is perfect for kitchens that require a more discreet look.
Specification
| General | |
| Blower Included | Yes |
| Internal Blower 1 CFM | 290 |
| Internal Blower 1 Min. Sones | 1.3 |
| Internal Blower 1 Max Sones | 3.2 |
| Minimum CFM | 180 |
| Installation Type | Under Cabinet |
| For Outdoor Use | No |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | No |
| Clean Air Function | No |
| Lighting Type | Halogen |
| Lights Quantity | 2 |
| Watts Per Bulb | 50 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Vertical in. | 6 |
| Mounting Height Above Cooktop in. | 24 - 32 |
| Voltage | 120 |
| Maximum Amperage | 1.55 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-00PI, Z0B0040, Z0F-C0PI |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Steel |
| Wattage | 186 |
| Certification | UL |
| Nominal Width in. | 24 |
| Net Width in. | 24.9375 |
| Net Depth in. | 11.9375 - 18.75 |
| Net Height in. | 1.5 |
| Weight lbs. | 26.2 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Duct Type | Vertical |
| Duct Type 2 | Horizontal |
