Modena, Wall, 90cm, SS+Glass, LED, ACT
Modena, Wall, 90cm, SS+Glass, LED, ACT
Everyday Price
$1,499.00
Sale Price
$1,399.00
Total Savings
$100.00
Extended Service Contracts
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 35.5
Height: 27 - 50
Depth: 22.125
Color
Also Comes In
Stainless Steel
$1,299.00
Features
- LumiLight LED Lighting
- Airflow Control Technology™ (ACT™)
- ICON Touch® Controls
- Dishwasher Safe Aluminum Mesh Filters
- Low-profile body
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
Product Description

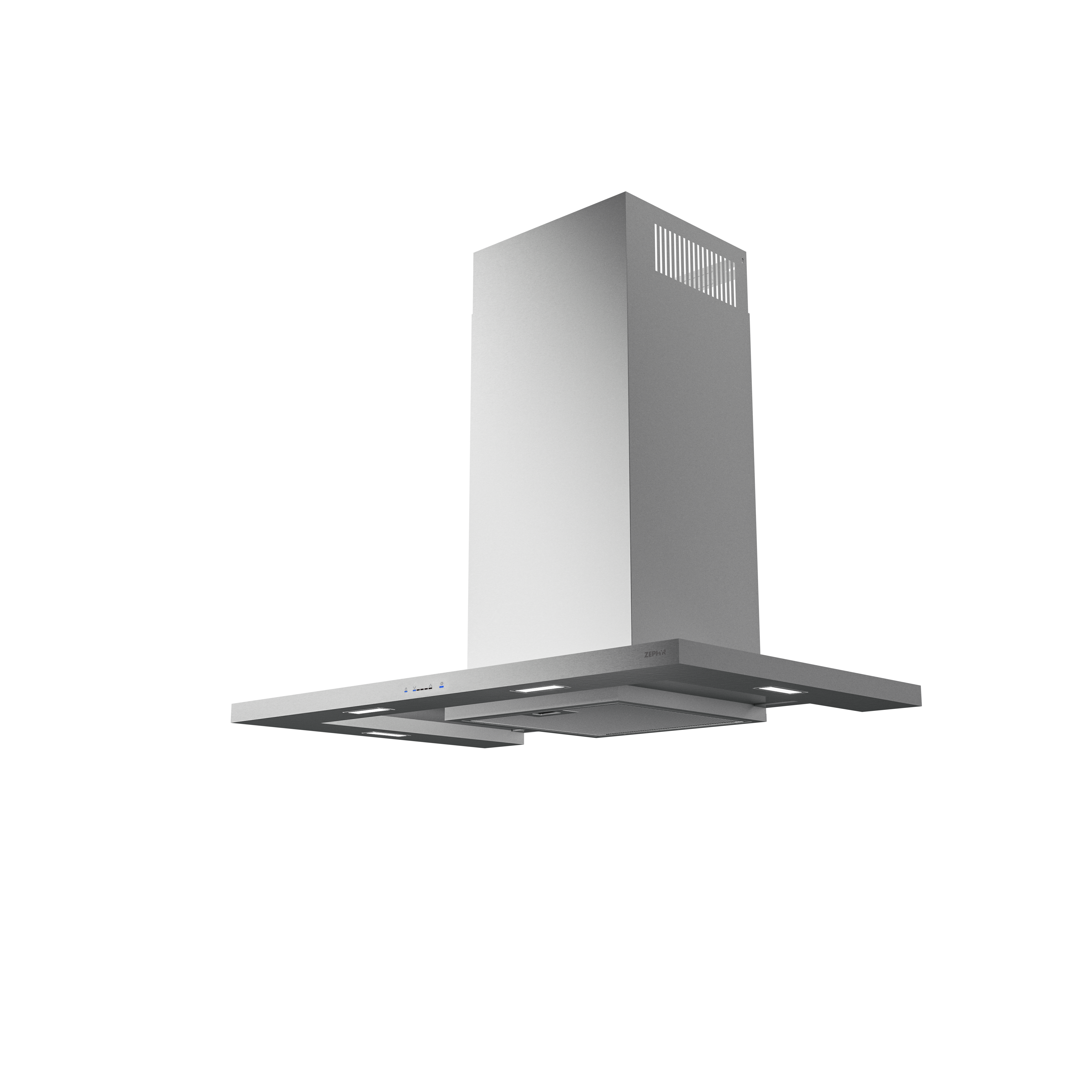

Resembling a floating island made of steel and glass, Modena houses LumiLight LED lighting and 5-speed ICON Touch® controls within its one-inch stainless steel canopy. Nestled discreetly between the chimney and its outer ring, Modena’s glass canopy adds a sense of lightness and augments the range hood’s symmetry and low-profile design.
Specification
| General | |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Wall |
| For Outdoor Use | No |
| Controls Type | ICON Touch® |
| Blower Speeds | 5 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 4 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Duct Discharge | Vertical |
| Duct Size; Vertical in. | 8 |
| Mounting Height Above Cooktop in. | 24 - 34 |
| Voltage | 120 |
| Maximum Amperage | 4 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-00MO, Z1C-00MO, MUA006A, Z0F-C002 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 480 |
| Certification | UL |
| Nominal Width in. | 36 |
| Net Width in. | 35.5 |
| Net Depth in. | 22.125 |
| Net Height in. | 27 - 50 |
| Weight lbs. | 73.500 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10 ft. |
| Chimney Height in. | 25.5 |
| Chimney Width in. | 13.37 |
| Chimney Depth in. | 12.37 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
