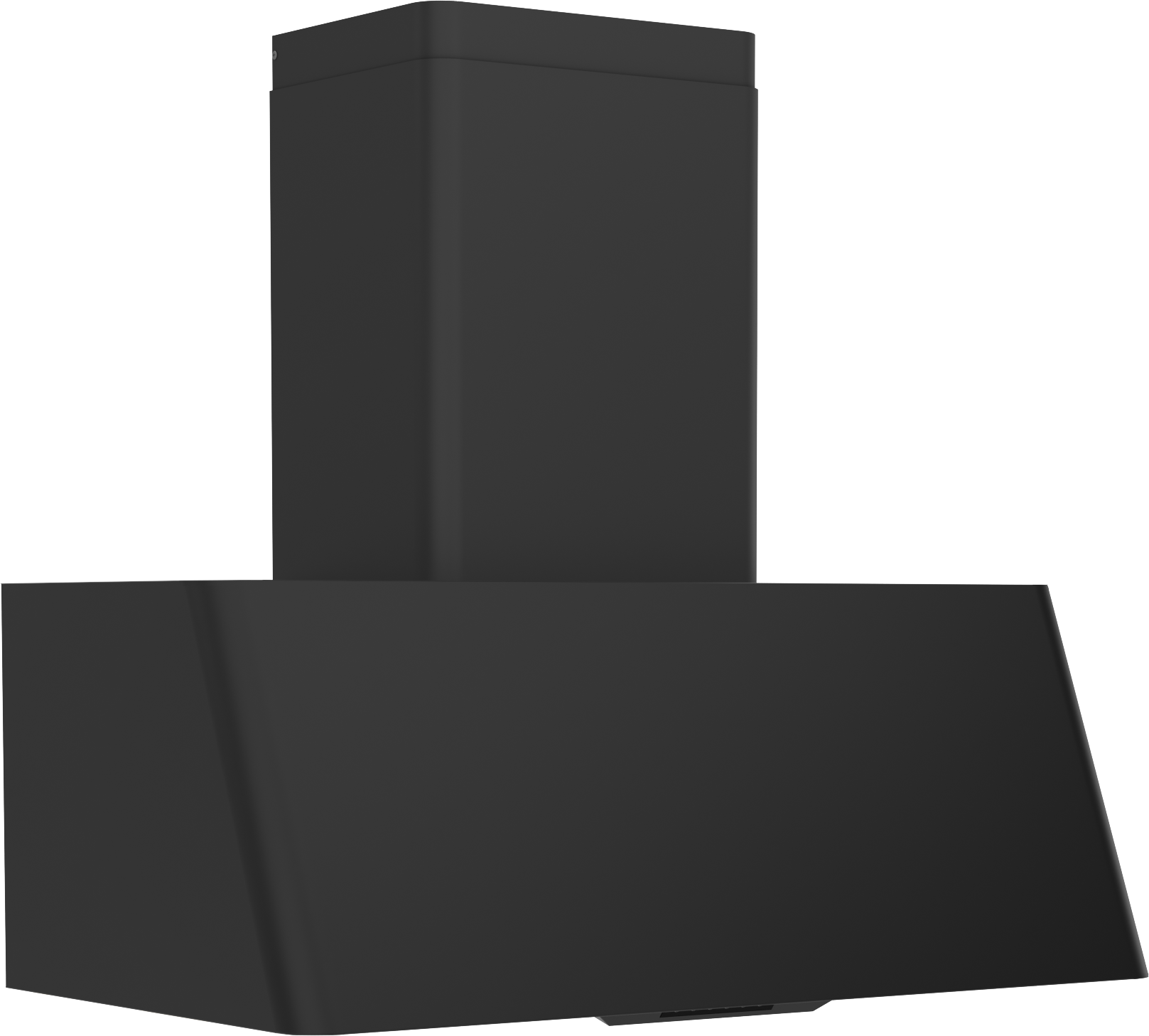

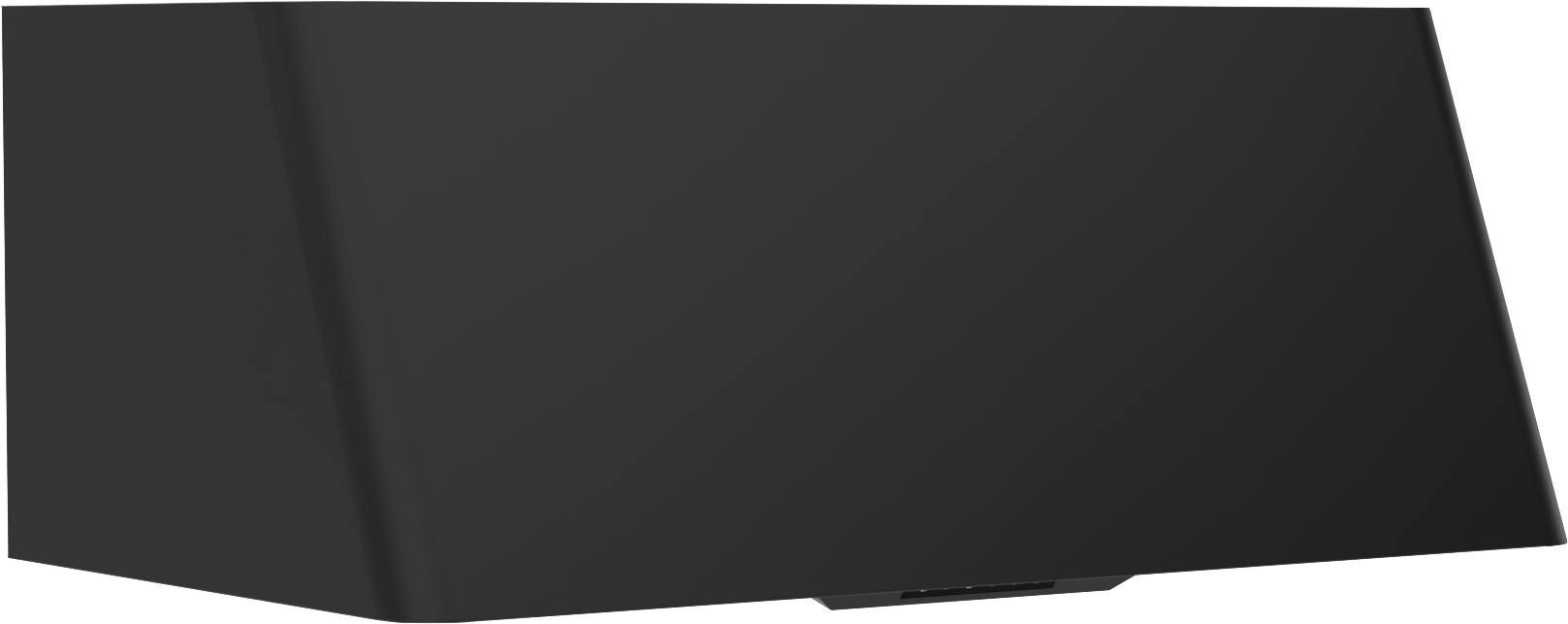

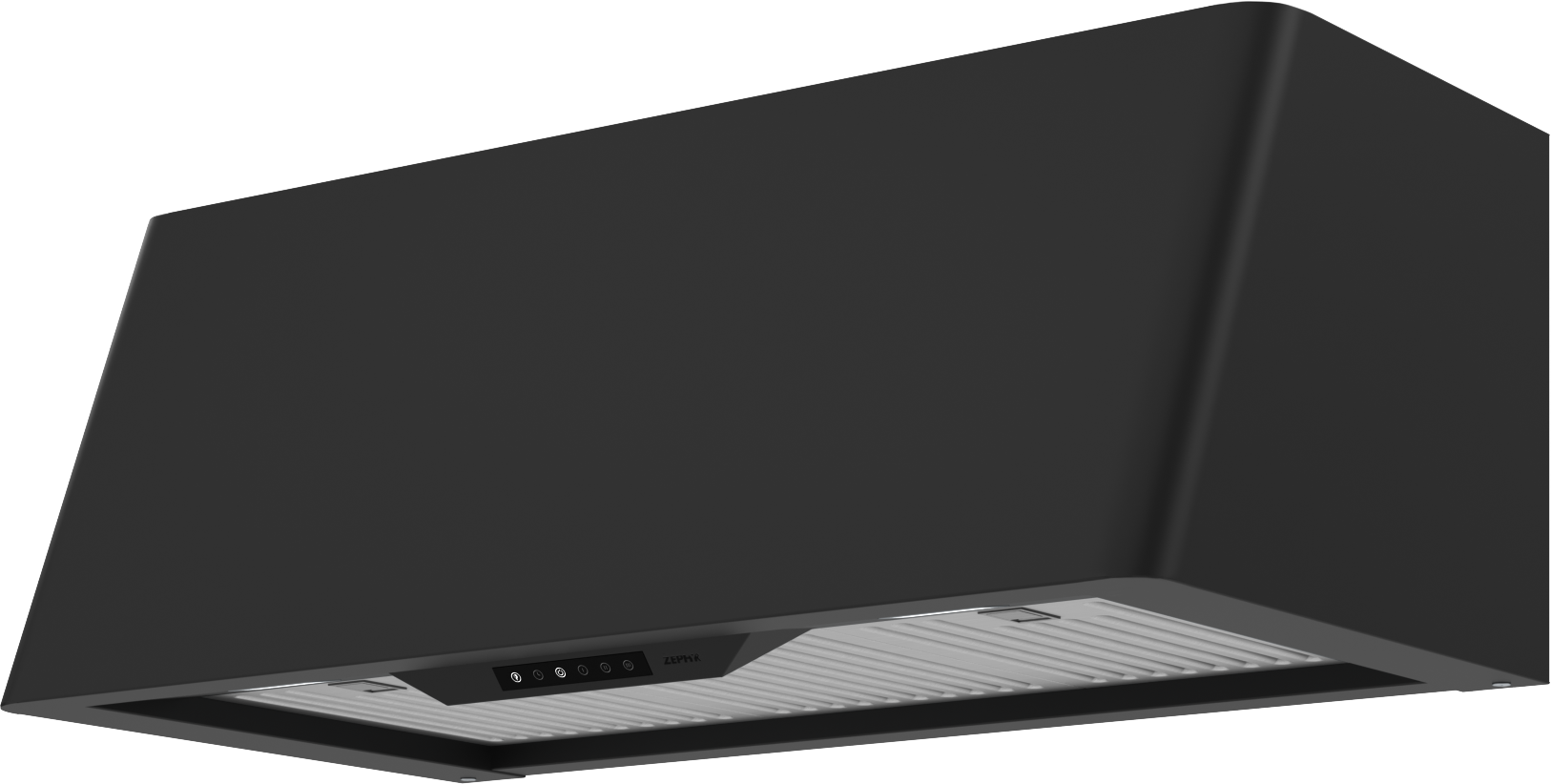

Mesa 90cm, Matte Black, BODY ONLY
Mesa 90cm, Matte Black, BODY ONLY
Everyday Price
$2,199.00
Sale Price
$1,999.00
Total Savings
$200.00
Extended Service Contracts
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 35.3125
Height: 13.8125
Depth: 19.6875
Color
Also Comes In

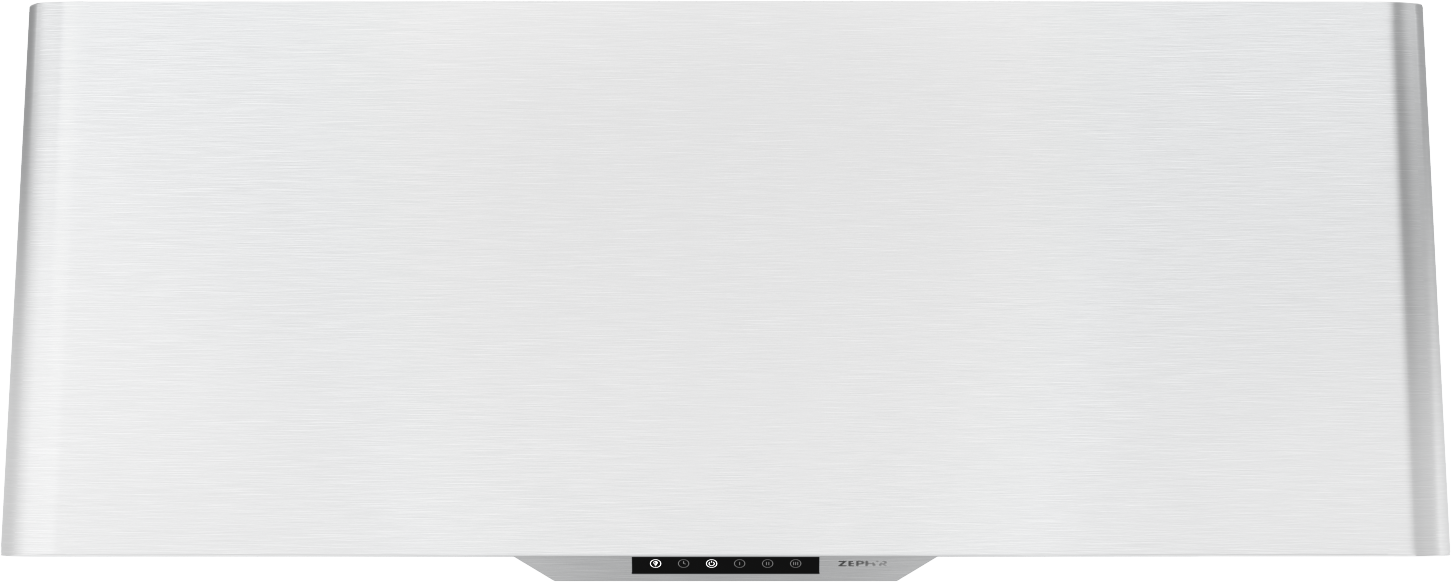

Stainless Steel
$1,999.00

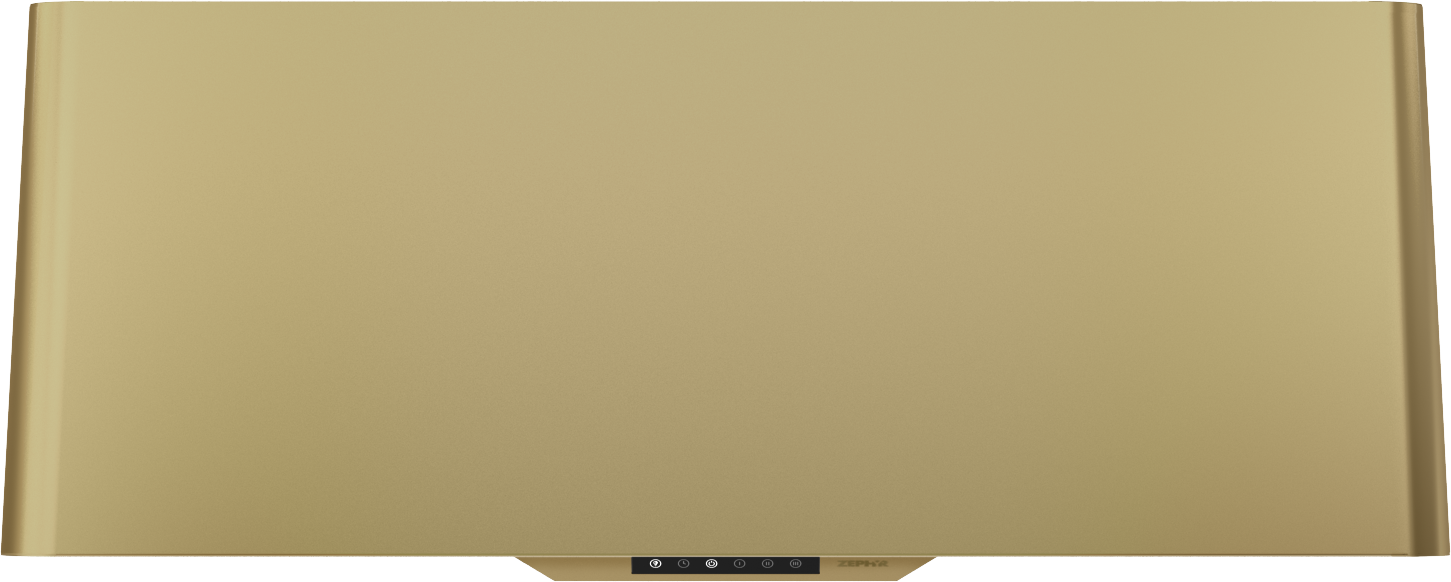

Satin Gold
$2,099.00
Features
- Multiple Blower Options
- Invisible Touch Controls
- Tri-Level Lighting
- Optional Accent Rail Kit
- Optional Wireless Remote Control (RC-0003)
- Optional Duct Cover Kit
- Optional Ductless Recirculating Kit
Product Description

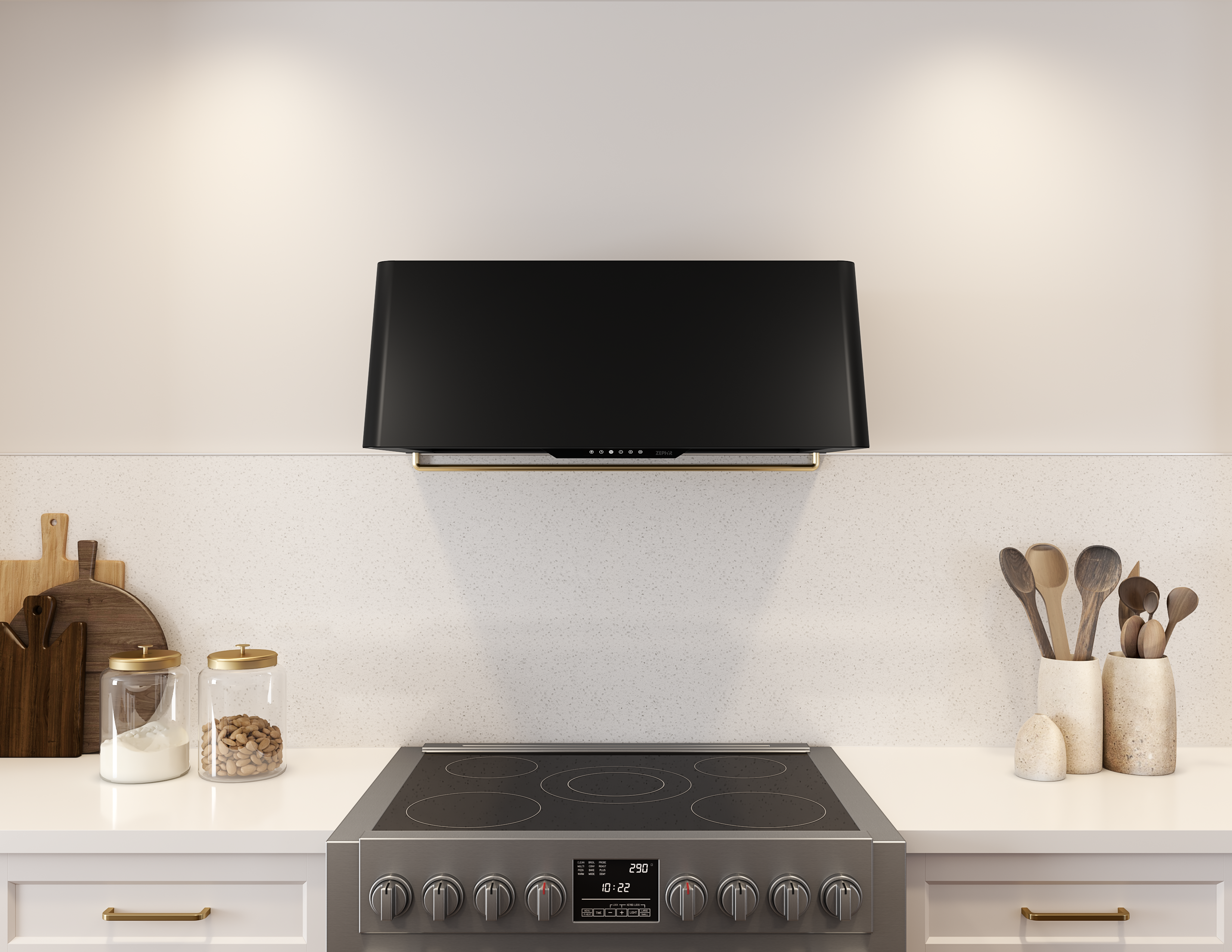

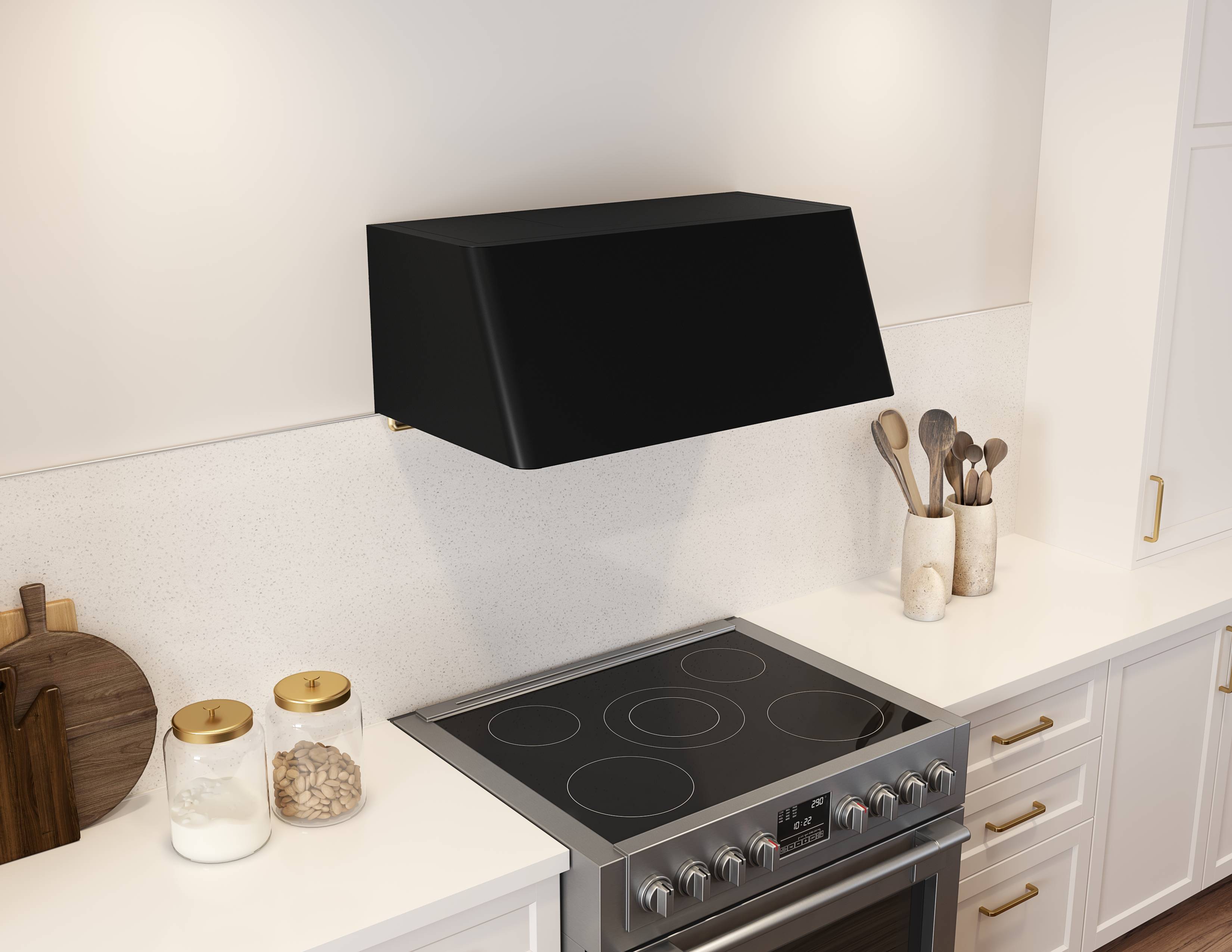

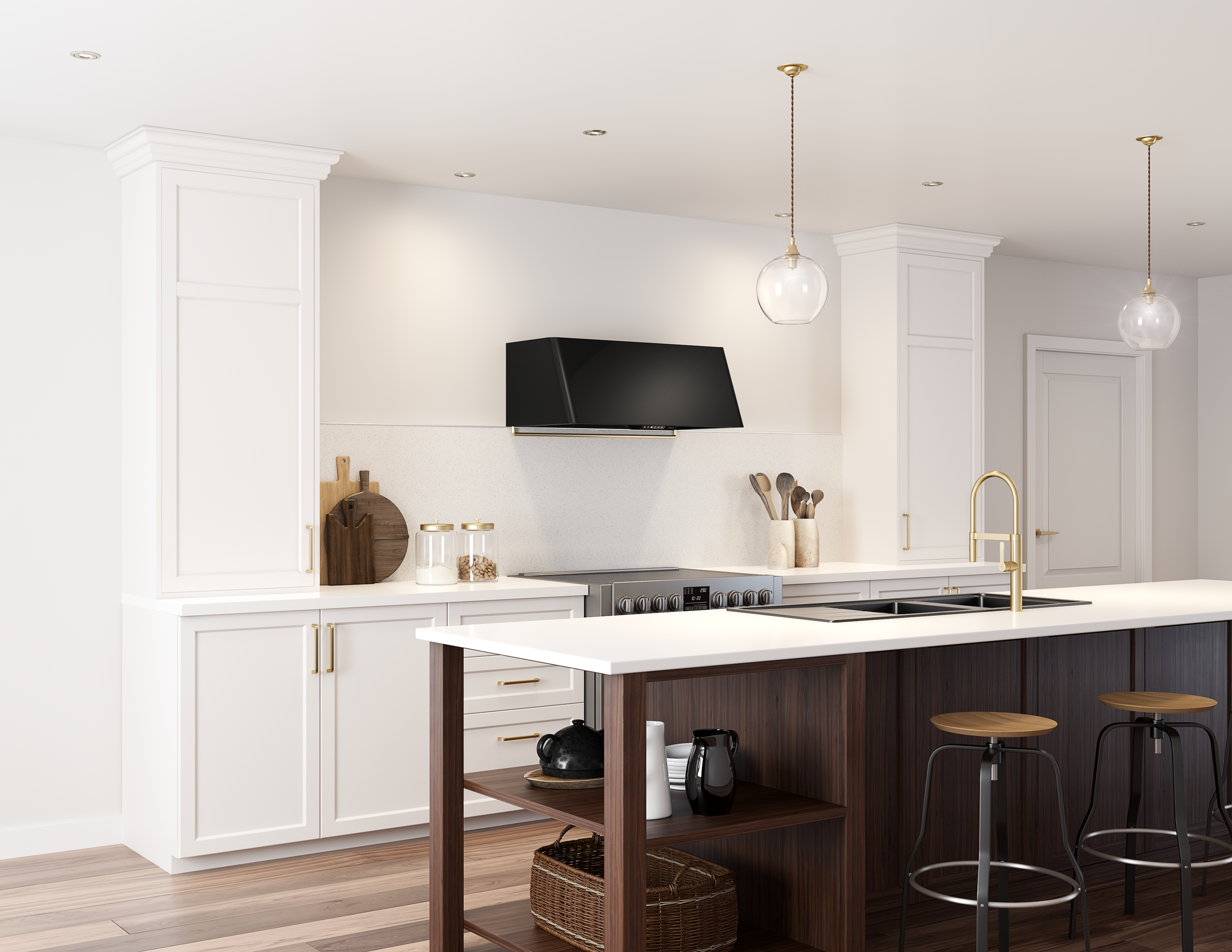

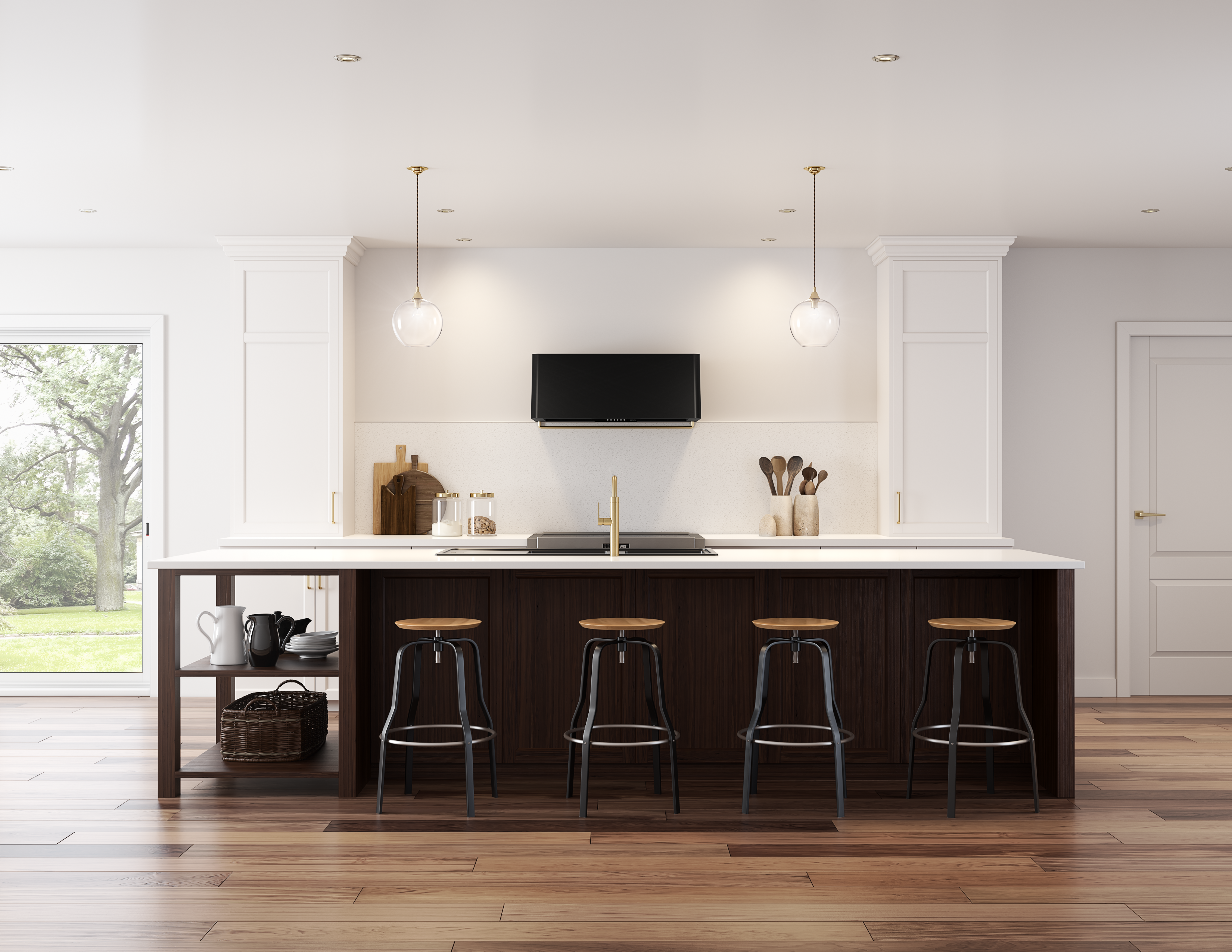

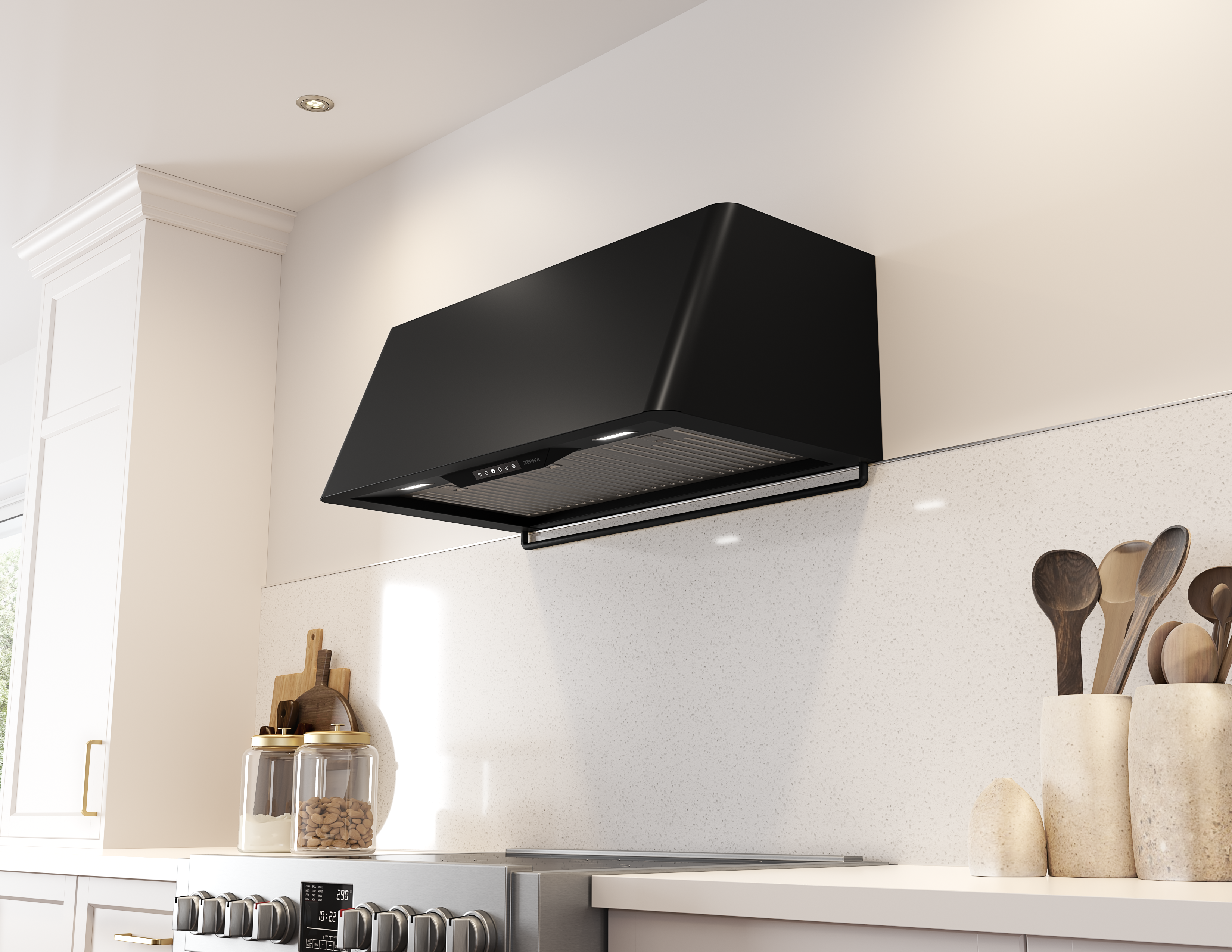

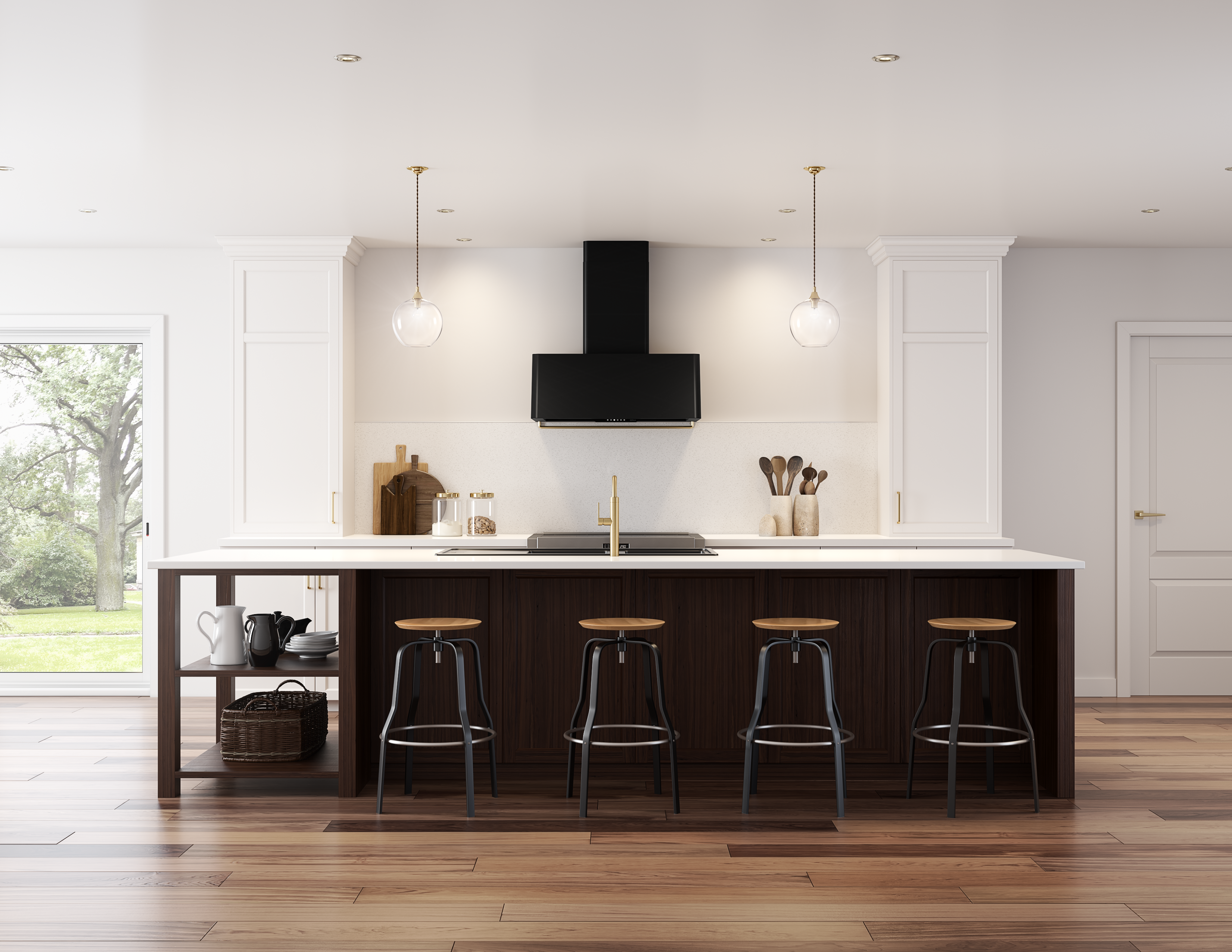

Taking kitchen glamour to new heights, the Mesa Wall hood is available in three high-style finishes: satin gold, matte black, and stainless steel, for the very latest in kitchen design trends. With Invisible Touch Controls, hybrid baffle filters and multiple blower options, the Mesa is set to become the hardworking star of the most fashionable kitchens. Optional accessories include an accent rail and duct cover in satin gold, matte black, or stainless steel, and a wireless remote control.
Specification
| General | |
| Blower Included | No |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 6 |
| Internal Blower 2 CFM | 290 |
| Internal Blower 2 Max Sones | 3 |
| In-Line Blower CFM | 1000 |
| External Blower CFM | 1000 |
| Minimum CFM | 200 |
| Installation Type | Wall |
| For Outdoor Use | No |
| Controls Type | Invisible Touch |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 5 |
| Lights Levels | 3 |
| Grease Filter Type | Hybrid Baffle |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal in. | 8 |
| Duct Size; Vertical in. | 6, 8 |
| Mounting Height Above Cooktop in. | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 6.53 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 2 / 1 |
| Compatible Appliances | CBI-390A, CBE-1000, CBI-290A, CBI-600A, PBN-1000A, CBI-290C, PBI-1000B-DME, Z0F-C010, Z1C-00MEMB, ZRC-01ME, MERAIL-00SG, MERAIL-00SS, MERAIL-00MB, MUA006A, MUA008A, RC-0003 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Steel |
| Wattage | 783 |
| Certification | UL |
| Nominal Width in. | 36 |
| Net Width in. | 35.3125 |
| Net Depth in. | 19.6875 |
| Net Height in. | 13.8125 |
| Weight lbs. | 70 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10.5 ft. |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type 2 | Horizontal |
