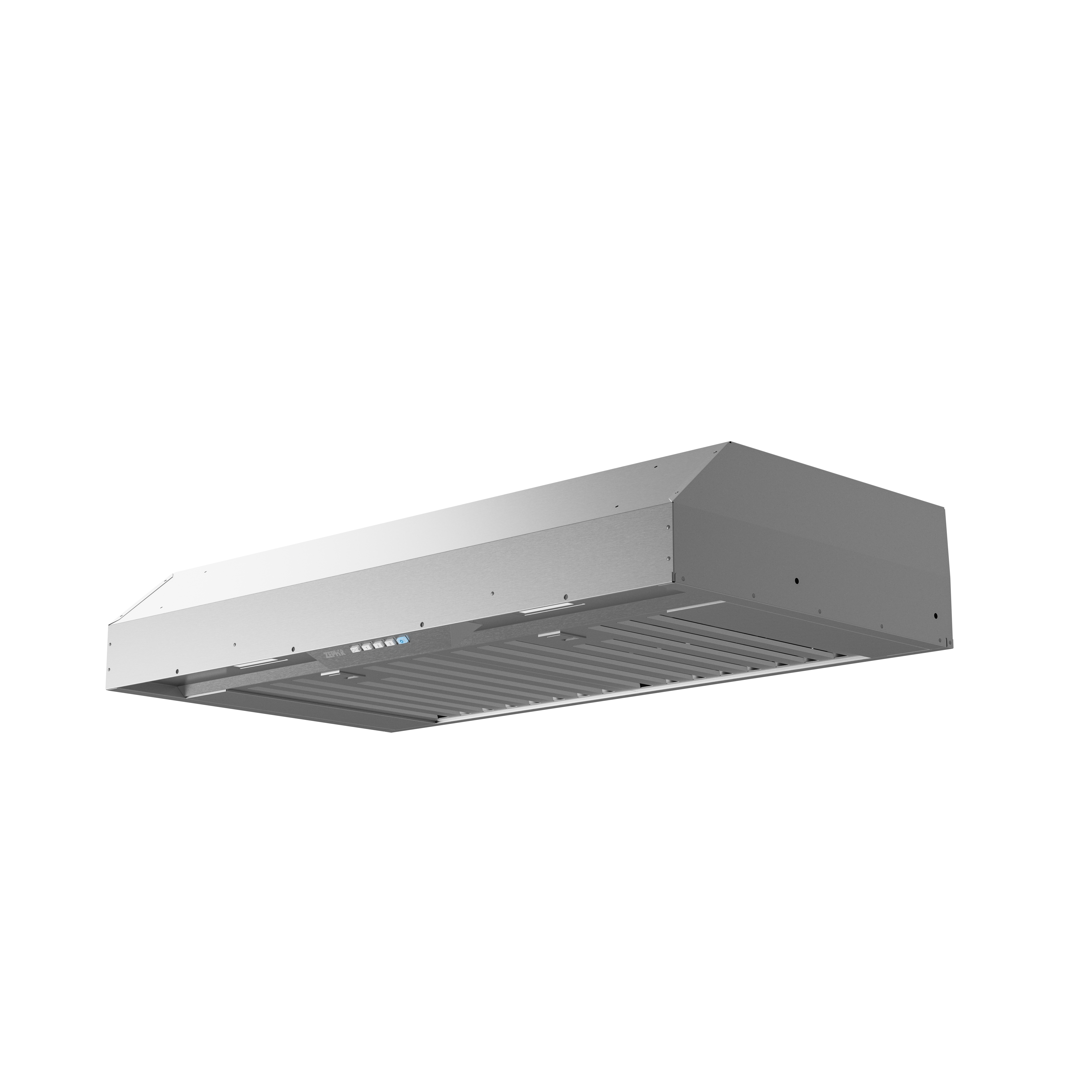

Monsoon Mini II, 36in, SS, LED, ACT
Monsoon Mini II, 36in, SS, LED, ACT
Everyday Price
$1,049.00
Sale Price
$949.00
Total Savings
$100.00
Extended Service Contracts
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 34.375
Height: 6.125
Depth: 17.875
Color
Also Comes In
Stainless Steel
$849.00
Stainless Steel
$999.00
Stainless Steel
$1,049.00
Features
- Electronic Touch Controls
- 3 Speed Levels
- LumiLight LED Lighting
- Dual-Level Lighting
- Hybrid Baffle Filters
- Vertical or horizontal ducting
- Optional Ductless Recirculating Kit
Product Description
A quiet storm of air-clearing power in a designer package, the Monsoon Mini II gets the job done. Featuring a 600-CFM blower, hybrid baffle filters, Airflow Control Technology (ACT™), and dual-level LumiLight LED lighting. Also includes recirculating and make-up air options.
Specification
| General | |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1.4 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Insert |
| For Outdoor Use | No |
| Controls Type | Electronic |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Hybrid Baffle |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal in. | 3.25 x 10 |
| Duct Size; Vertical in. | 7, 3.25 x 10 |
| Mounting Height Above Cooktop in. | 24 - 34 |
| Voltage | 120 |
| Maximum Amperage | 2 |
| ADA Compliant | No |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-9100A, Z0F-C091, AK00067, MUA006A |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 240 |
| Certification | UL |
| Nominal Width in. | 36 |
| Net Width in. | 34.375 |
| Net Depth in. | 17.875 |
| Net Height in. | 6.125 |
| Weight lbs. | 33.5 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Clean Filter Alert | Yes |
| Cutout Depth in. | 18 |
| Cutout Width in. | 34.5 |
| Duct Type | Vertical |
| Duct Type 2 | Horizontal |
Documentation
From the Manufacturer
Warranty
Extended warranties can save you hundreds, sometimes even thousands of dollars in unexpected repairs. You can contact us, or visit our store for additional details.
Delivery
Let our team co-ordinate professional delivery and installation on your new purchase. Some restrictions may apply.
Disclosures
Proposition 65 Warning for California ResidentsFeatures
- Electronic Touch Controls
- 3 Speed Levels
- LumiLight LED Lighting
- Dual-Level Lighting
- Hybrid Baffle Filters
- Vertical or horizontal ducting
- Optional Ductless Recirculating Kit
