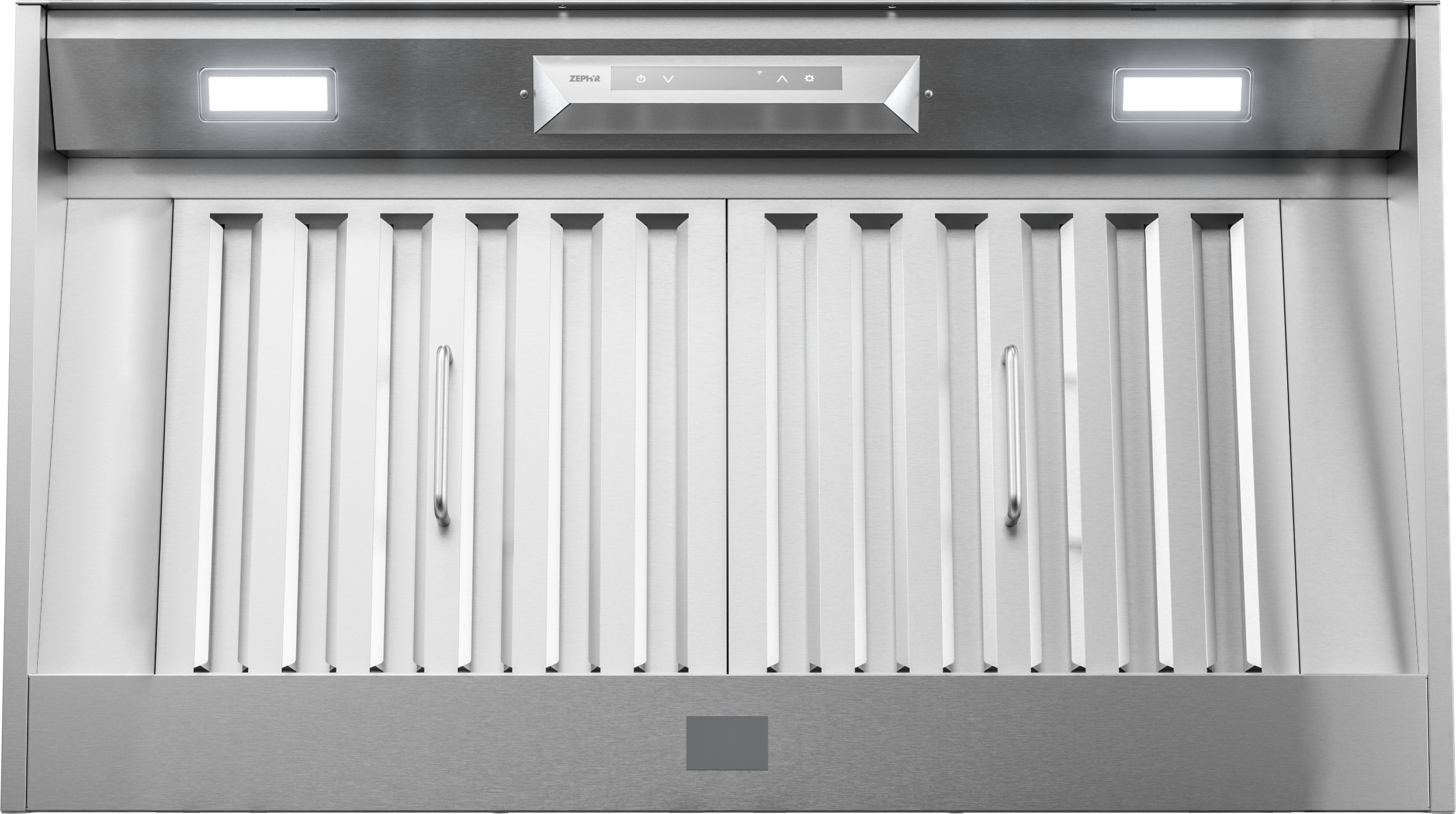

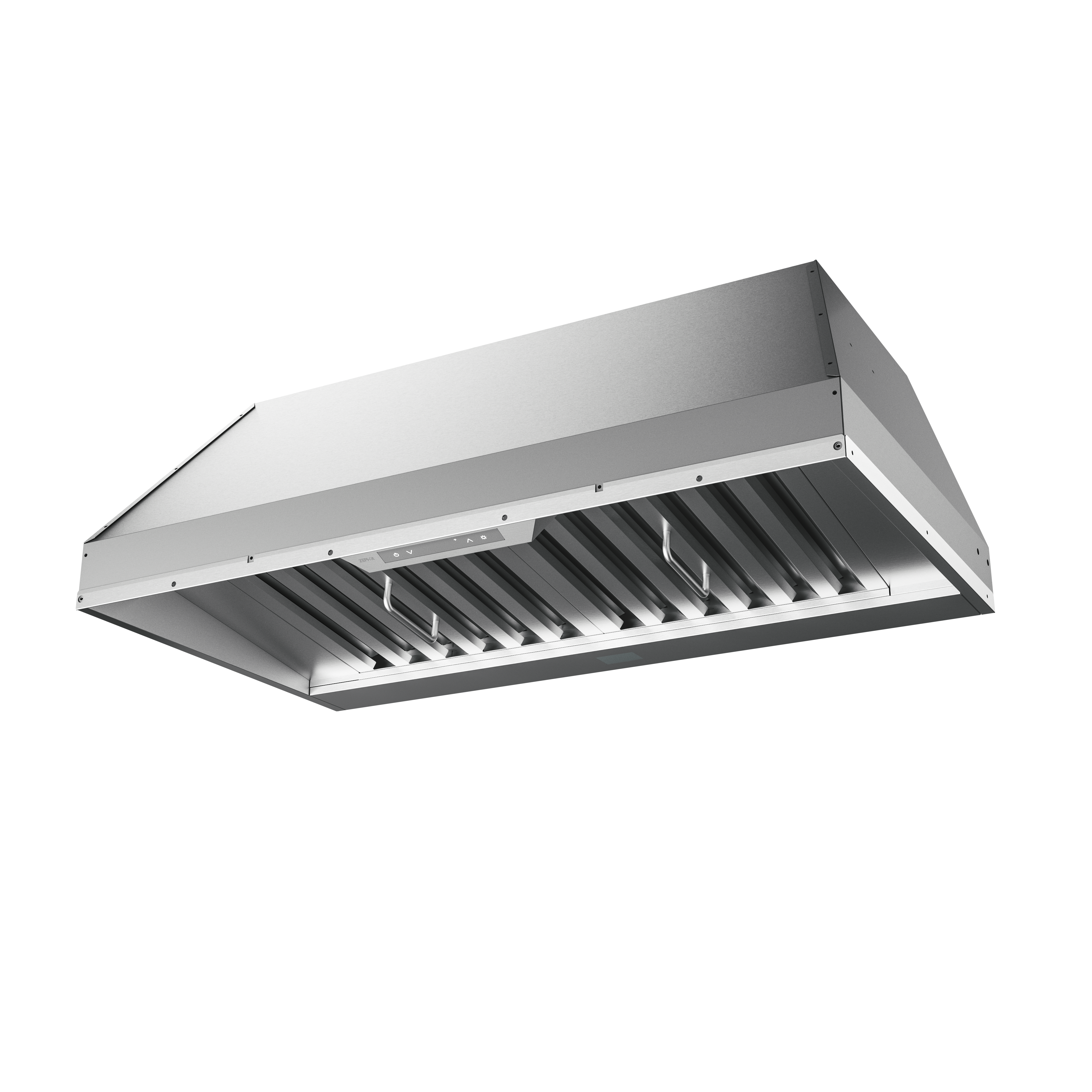

Monsoon Connect, 42in, SS, LED, ACT
Monsoon Connect, 42in, SS, LED, ACT
Everyday Price
$1,749.00
Sale Price
$1,649.00
Total Savings
$100.00
Extended Service Contracts
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 40.375
Height: 12
Depth: 19.25
Color

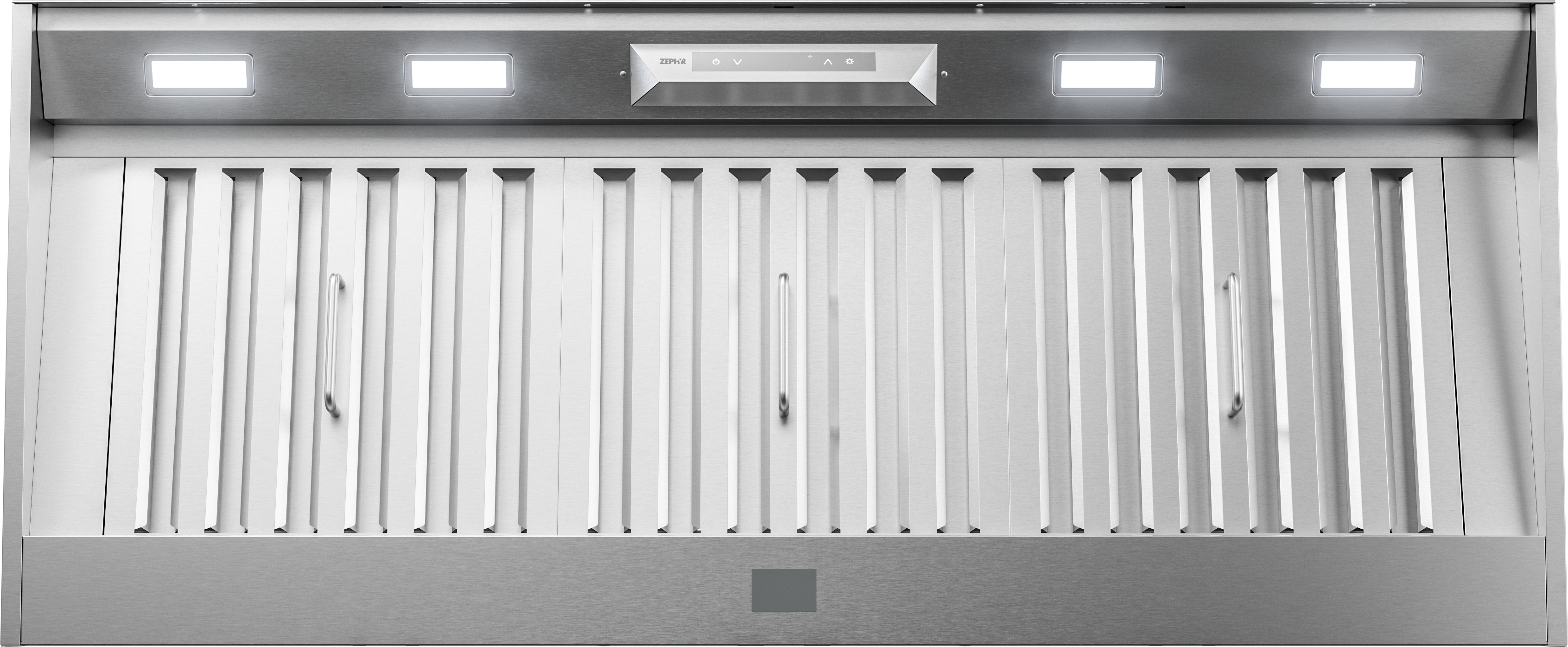

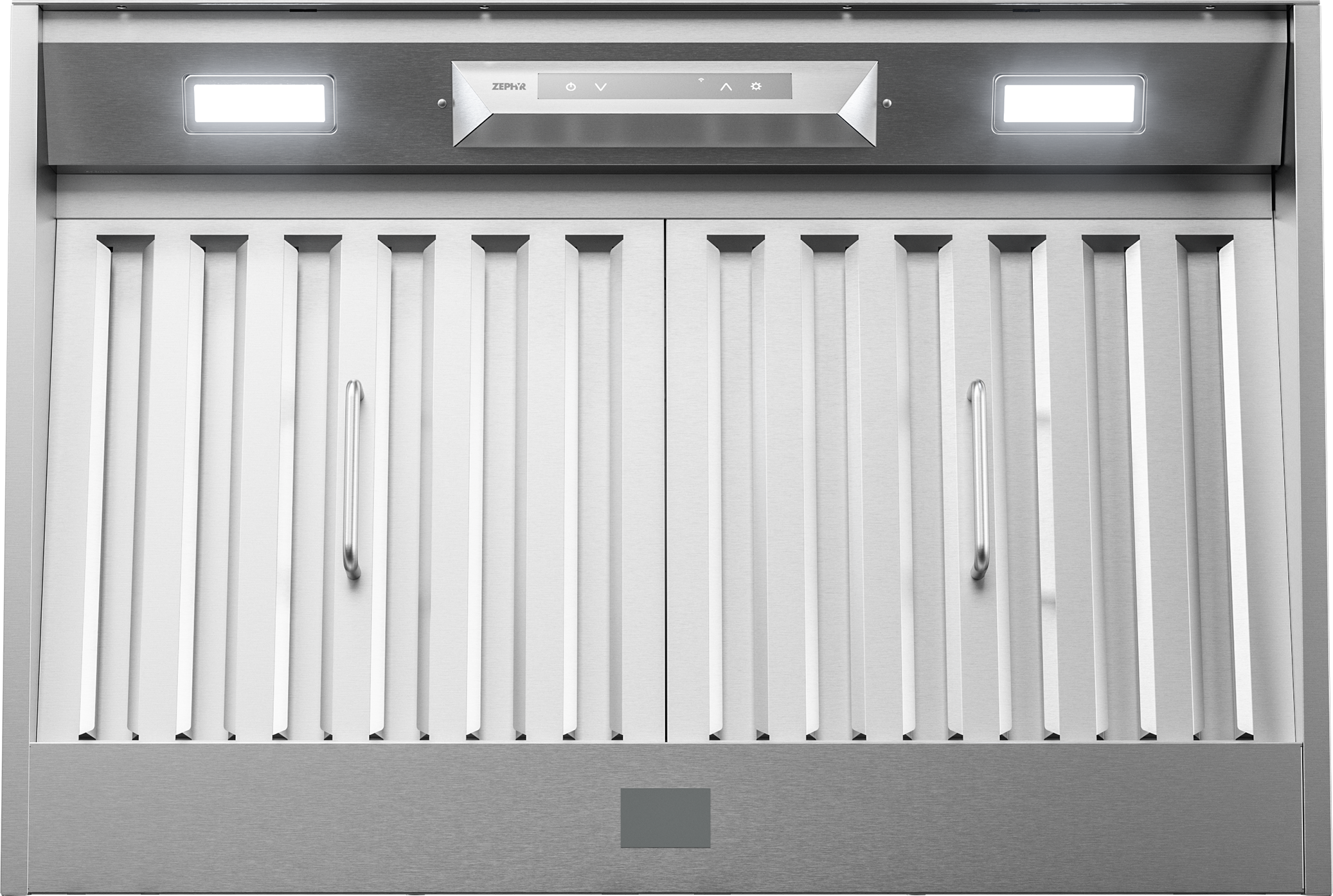

Also Comes In
Stainless Steel
$1,549.00
Stainless Steel
$1,749.00
Stainless Steel
$1,499.00
Features
- Compatible with Zephyr Connect App
- LumiLight LED Lighting
- Airflow Control Technology™ (ACT™)
- CleanAir Function
- Professional Baffle Filters
- Vertical or horizontal ducting
- Optional Wireless Remote Control (14000005)
Product Description
Monsoon Connect is unique in the marketplace. Optional dual 1300-CFM PowerWave™ blowers and stainless steel baffle filters make for a powerful, performance-driven range hood insert that is easy to clean. With a wireless remote-control option and Zephyr Connect, our most advanced operation system makes the Monsoon Connect the most quiet and energy efficient, one-piece liner available today. Dual blowers available on the 36”, 42″ and 48″ models.
Specification
| General | |
| Blower Included | Yes |
| Blower CFM w/ACT | 590, 390, 290 |
| Internal Blower 1 CFM | 700 |
| Internal Blower 1 Min. Sones | 0.8 |
| Internal Blower 1 Max Sones | 6 |
| Internal Blower 2 CFM | 1300 |
| Minimum CFM | 200 |
| Installation Type | Insert |
| For Outdoor Use | No |
| Controls Type | Proximity Touch |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 3 |
| Grease Filter Type | Pro baffle |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal in. | 8 |
| Duct Size; Vertical in. | 8 |
| Mounting Height Above Cooktop in. | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 5 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | 14000005, PBD-1300B, MUA008A, MUA010A |
| Bluetooth Connected | No |
| Wi-Fi Connected | Yes |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | Yes |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 600 |
| Certification | UL |
| Nominal Width in. | 42 |
| Net Width in. | 40.375 |
| Net Depth in. | 19.25 |
| Net Height in. | 12 |
| Weight lbs. | 55.000 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Clean Filter Alert | Yes |
| Cutout Depth in. | 19.625 |
| Cutout Width in. | 40.625 |
| Duct Type | Vertical |
| Duct Type 2 | Horizontal |
Documentation
From the Manufacturer
Warranty
Extended warranties can save you hundreds, sometimes even thousands of dollars in unexpected repairs. You can contact us, or visit our store for additional details.
Delivery
Let our team co-ordinate professional delivery and installation on your new purchase. Some restrictions may apply.
Disclosures
Proposition 65 Warning for California ResidentsFeatures
