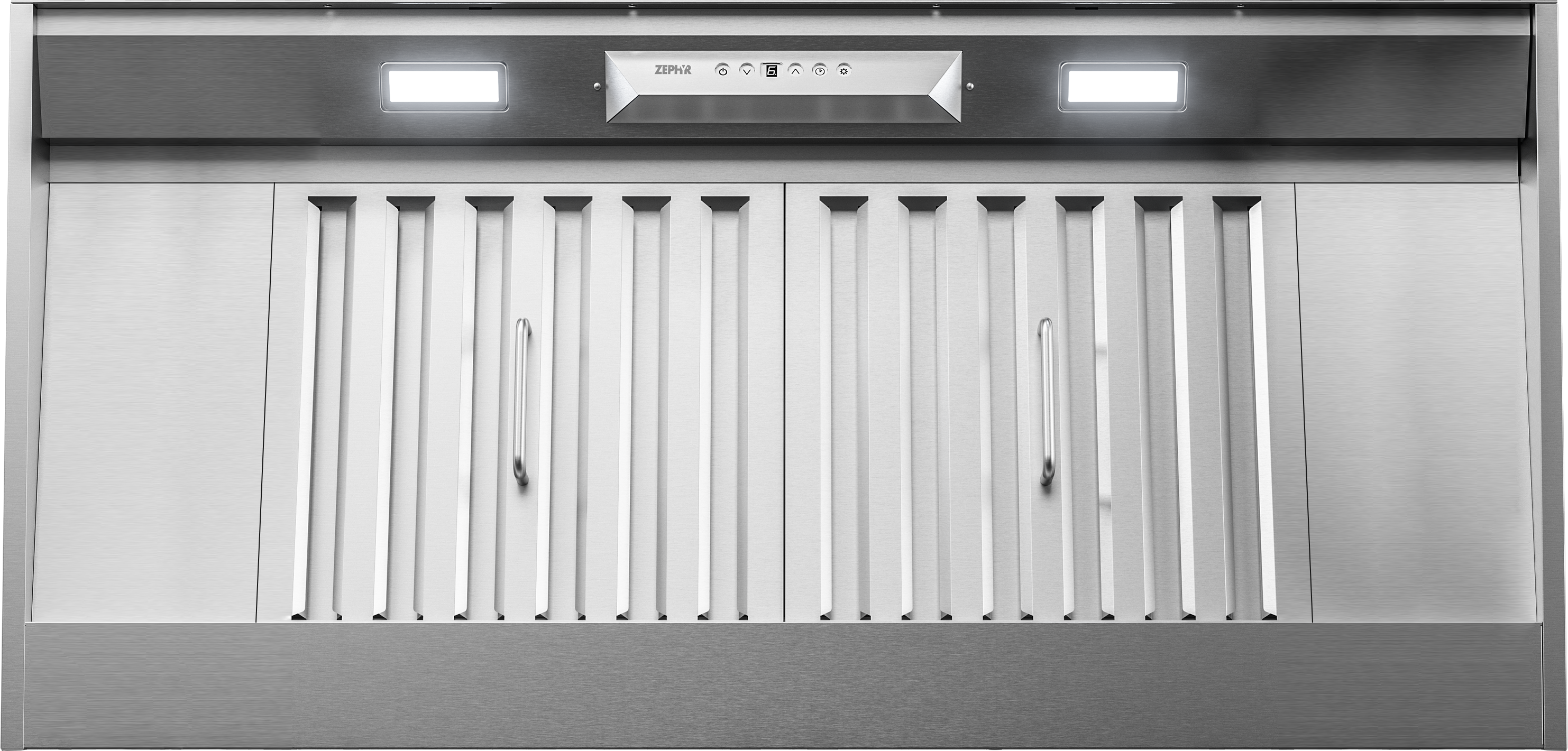

Monsoon I, Insert, 28-3/8in, SS, LED, ACT
Monsoon I, Insert, 28-3/8in, SS, LED, ACT
Everyday Price
$1,299.00
Sale Price
$1,199.00
Total Savings
$100.00
Extended Service Contracts
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 28.375
Height: 12
Depth: 19.25
Color
Also Comes In
Stainless Steel
$1,299.00
Stainless Steel
$1,849.00
Stainless Steel
$1,949.00
Features
- Airflow Control Technology™ (ACT™)
- LumiLight LED Lighting
- CleanAir Function
- Electronic Touch Controls
- Professional Baffle Filters
- Vertical or horizontal ducting
- Dual-Level Lighting
Product Description
Monsoon I has taken the one-piece liner to the next level. Including dual-level LumiLight LED’s and an ADA-compliant wireless remote you can easily control Monsoon I without ever reaching over a dangerous cooking surface. Equipped with 6-speed electronic controls, pro baffle filters, our exclusive ACT™ technology and either a powerful 600-CFM blower (30” and 36” models) or 1,200-CFM blower (42” and 48” models).
Specification
| General | |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Min. Sones | 1 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 200 |
| Installation Type | Insert |
| For Outdoor Use | No |
| Controls Type | Electronic |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal in. | 8 |
| Duct Size; Vertical in. | 8 |
| Mounting Height Above Cooktop in. | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 5 |
| ADA Compliant | Yes |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | MUA010A, 14000005 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | Yes |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 600 |
| Certification | UL |
| Nominal Width in. | 30 |
| Net Width in. | 28.375 |
| Net Depth in. | 19.25 |
| Net Height in. | 12 |
| Weight lbs. | 40.500 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Clean Filter Alert | Yes |
| Cutout Depth in. | 22.625 |
| Cutout Width in. | 28.625 |
| Duct Type | Vertical |
| Duct Type 2 | Horizontal |
