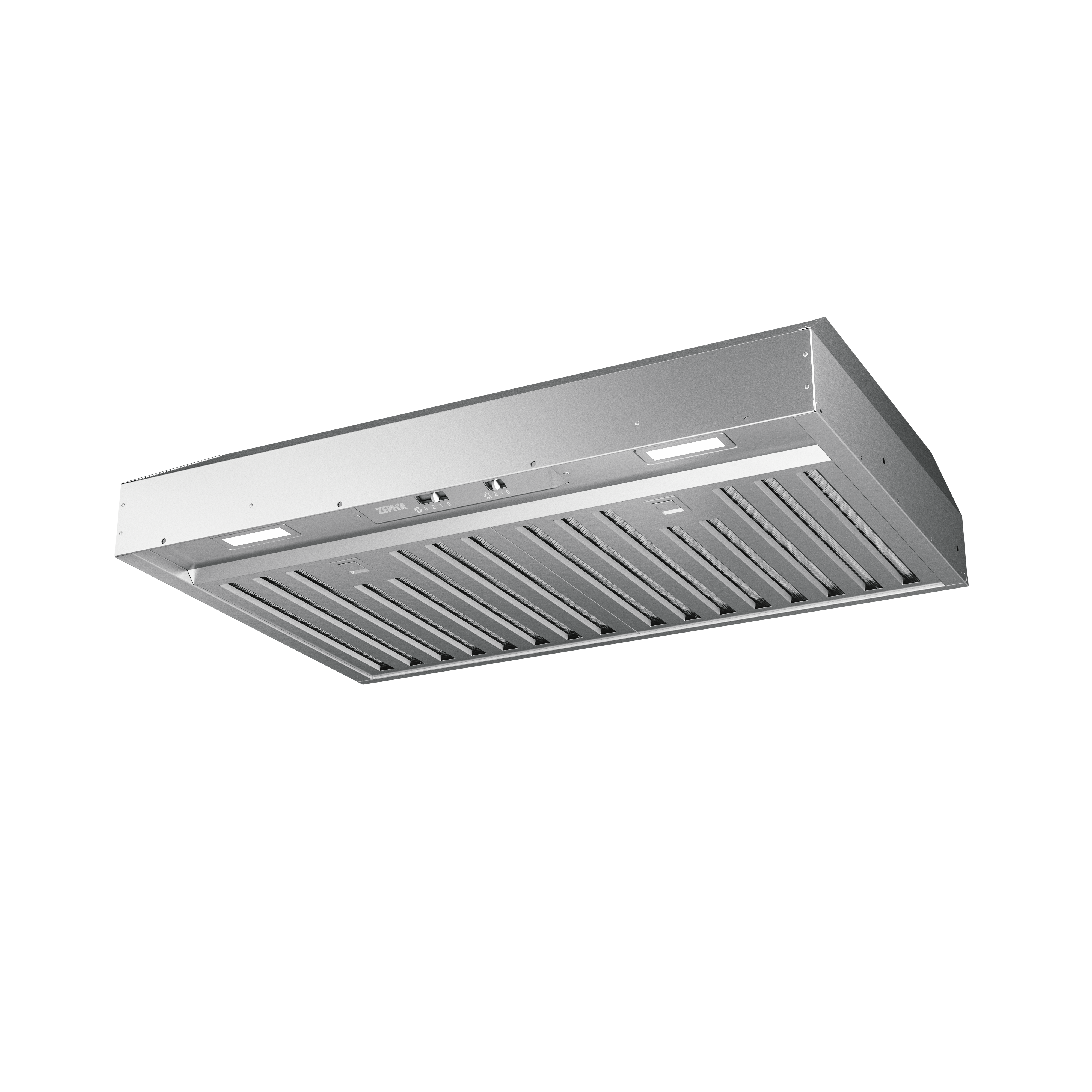

Monsoon Mini, Insert, 30", SS, 300 CFM
Monsoon Mini, Insert, 30", SS, 300 CFM
Everyday Price
$749.00
Sale Price
$699.00
Total Savings
$50.00
Extended Service Contracts
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 28.375
Height: 6.125
Depth: 17.875
Color
Also Comes In
Stainless Steel
$749.00
Features
- Mechanical Slide Controls
- 3 Speed Levels
- LumiLight LED Lighting
- Dual-Level Lighting
- Hybrid Baffle Filters
- Vertical or horizontal ducting
- Optional Ductless Recirculating Kit
Product Description
Good things come in small packages, and in this case, it’s the Monsoon Mini one-piece liner. Includes dual-level LumiLight LED lighting, 3-speed mechanical slide controls, and hybrid baffle filters. Equipped with a 300-CFM blower and the ability to duct either vertically or horizontally.
Specification
| General | |
| Blower Included | Yes |
| Internal Blower 1 CFM | 300 |
| Internal Blower 1 Min. Sones | 1.5 |
| Internal Blower 1 Max Sones | 4 |
| Minimum CFM | 150 |
| Installation Type | Insert |
| For Outdoor Use | No |
| Controls Type | Mechanical Slide |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Hybrid Baffle |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal in. | 3.25 x 10 |
| Duct Size; Vertical in. | 7, 3.25 x 10 |
| Mounting Height Above Cooktop in. | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 2 |
| ADA Compliant | Yes, with optional wall switch |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | ZRC-9100A, AK00067, Z0F-C091 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 240 |
| Certification | UL |
| Nominal Width in. | 30 |
| Net Width in. | 28.375 |
| Net Depth in. | 17.875 |
| Net Height in. | 6.125 |
| Weight lbs. | 22 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 12 ft. |
| Clean Filter Alert | No |
| Cutout Depth in. | 18.3125 |
| Cutout Width in. | 28.625 |
| Duct Type | Vertical |
| Duct Type 2 | Horizontal |
Documentation
From the Manufacturer
Warranty
Extended warranties can save you hundreds, sometimes even thousands of dollars in unexpected repairs. You can contact us, or visit our store for additional details.
Delivery
Let our team co-ordinate professional delivery and installation on your new purchase. Some restrictions may apply.
Disclosures
Proposition 65 Warning for California ResidentsFeatures
- Mechanical Slide Controls
- 3 Speed Levels
- LumiLight LED Lighting
- Dual-Level Lighting
- Hybrid Baffle Filters
- Vertical or horizontal ducting
- Optional Ductless Recirculating Kit
