24" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included)
24" Wide Built-In All-Freezer, ADA Compliant (Panel Not Included)
Everyday Price
$2,195.00
Extended Service Contracts
We might not be able to fulfill your order for the quantity requested
Dimensions
Width: 23.63
Height: 32
Depth: 22.63
Color
Features
- This item has recently been upgraded with a fully articulating hinge. The lock has been moved from the door front to kickplate. Images shown on website may not reflect product details
- Undercounter Freezer - 24" wide frost-free freezer sized to fit under lower ADA compliant counters
- ADA compliant design - 32" height allows easy installation under lower ADA compliant counters
- Built-in capable - Make the best use of space by installing your freezer under the counter and flush with other cabinets
- 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)
- Frost-free operation - No-frost convenience eliminates the need to manually defrost the unit
- Digital thermostat - Electronic controls offer easy and intuitive temperature management
- Recessed LED light - Elegant lighting with an on/off switch located on the control panel
- Factory-reversible door - Right hand door swing by default; if you require the door to open from the other direction, add upgrade "LHD" upon order
Product Description

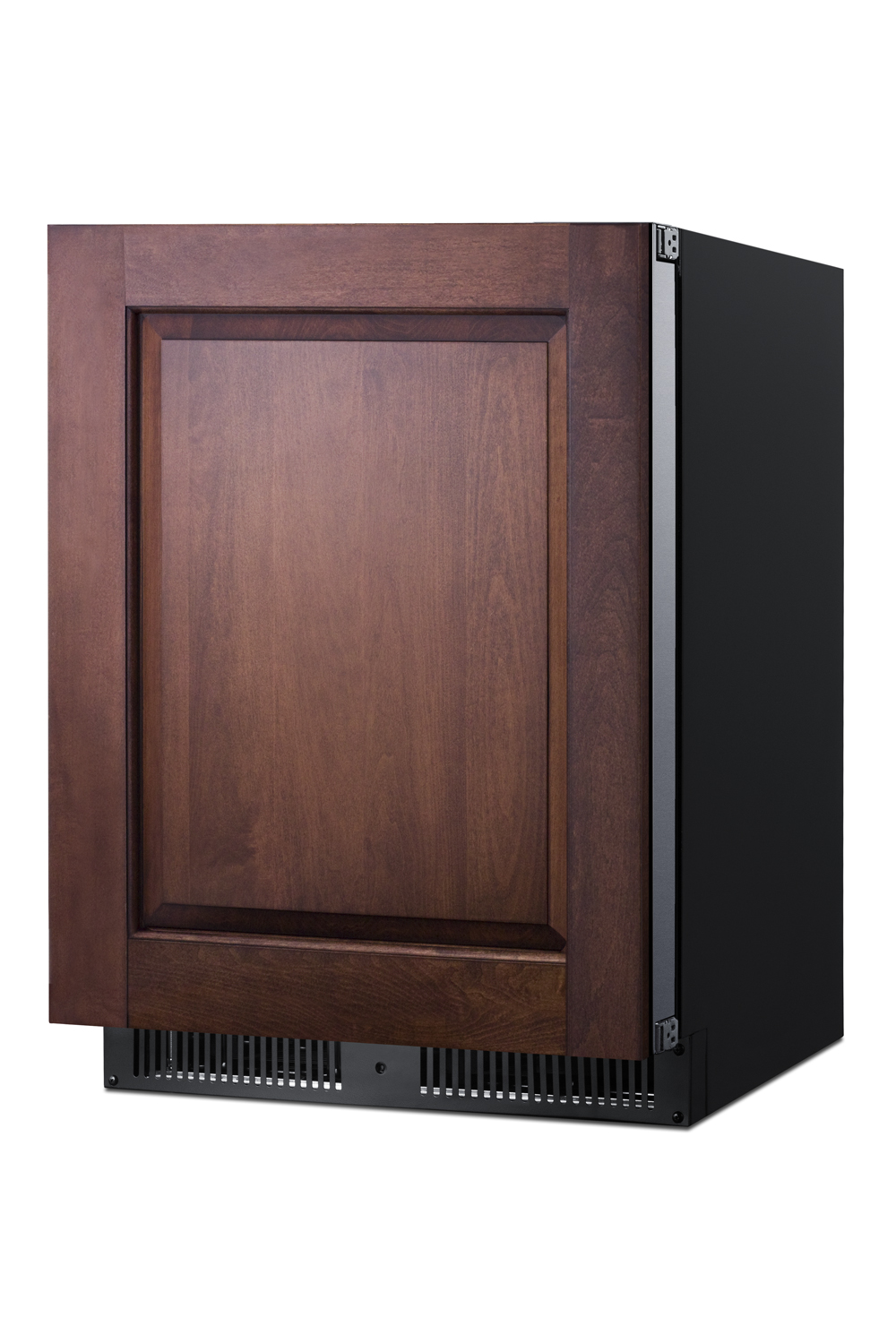

Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators. Model ALFZ53IFLHD is a 24" wide all-freezer that can be paired with our AL54PNR all-refrigerator. Sized at just 32" high, it can easily be installed under an ADA compliant counter. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The stainless steel door features a European-style fully articulating hinge for zero clearance opening. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can seamlessly blend into your existing cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). This unit has a flush back for easy cleaning and a right angle plug for a better fit. A factory-installed lock is located in the kickplate.Inside, the ALFZ53IFLHD utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look inside the black interior. Three adjustable chrome shelves can be set at five different positions to best accommodate your storage needs. Additional user-friendly features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. This unit features intuitive digital controls for easy temperature management. The ALFZ53IFLHD freezer is approved for residential use and also ETL-S listed to NSF-7 standards for commercial applications. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens. It's a perfect match for our AL54PNR all-refrigerator, both panel-ready to create a truly custom refrigerator/freezer s
Specification
| General | |
| Nominal Height (in.) | 32 |
| Height of Cabinet (in.) | 32 |
| Height to Hinge Cap (in.) | 0 |
| Width with Door Open (in.) | 0 |
| Depth with Handle (in.) | 24.63 |
| Depth with door at 90° (in.) | 45 |
| Capacity | 3.7 |
| Bottles | 0 |
| Defrost Type | Frost-Free |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 345 |
| Other Energy Info | 0.0 |
| Amps | 1.5 |
| Gas Yearly Amount | 0 |
| Gas Therm Amount | 0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight (lbs.) | 90 |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
Documentation
From the Manufacturer
Warranty
Extended warranties can save you hundreds, sometimes even thousands of dollars in unexpected repairs. You can contact us, or visit our store for additional details.
Delivery
Let our team co-ordinate professional delivery and installation on your new purchase. Some restrictions may apply.
Disclosures
Proposition 65 Warning for California ResidentsFeatures
